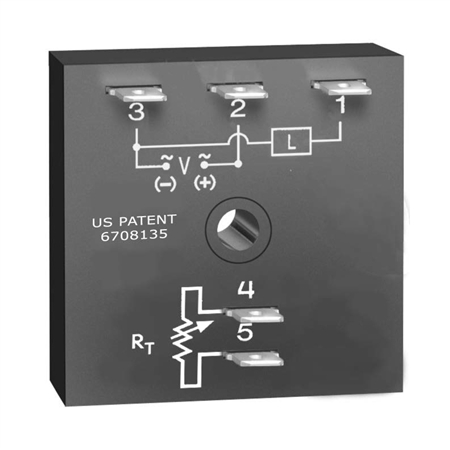

KSD3120A - SSAC Timer Recycling 12VDC 1A Ext Adjustable 0.1 10s On First 2x2
The KSD3 Series Family
The KSD3 Digi-Timer is a cost effective approach for ON/OFF recycling applications. The on time is equal to the off time. An adjustment of the RT will change the time delays of both on and off times. This series is designed for general purpose commercial and industrial applications where a small, cost effective, reliable, solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.
Operation (Recycling Flasher - ON Time First):
Upon application of input voltage, the output energizes and the T1, ON time begins. At the end of the ON time, the output de-energizes and the T2 OFF time begins. At the end of the OFF time, the output energizes and the cycle repeats as long as input voltage is applied.
Reset: Removing input voltage resets the output and time delays, and returns the sequence to the ON time. Operation (Recycling Flasher - OFF Time First):
Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the T1 ON time begins and the load energizes. At the end of the ON time the load de-energizes, and the cycle repeats until input voltage is removed.
Reset: Removing input voltage resets the output and time delays and the sequence to the OFF time.
Features:
- Fixed or adjustable delays from 0.1s -1000m
- Equal on and off delays
- ±0.5% repeat accuracy
- ± 5% factory calibration
- 12 to 120V in 4 ranges
- 1A, solid-state output
- Encapsulated
Auxiliary Products:
- External adjust potentiometer:
- P/N: P1004-95
- P/N: P1004-95-X
- Female quick connect:
P/N: P1015-64 (AWG 14/16)
- Quick connect to screw adaptor: P/N: P1015-18
- Mounting bracket: P/N: P1023-6
- Versa-knob: P/N: P0700-7
- DIN rail: P/N: C103PM (Al)
- DIN rail adaptor: P/N: P1023-20
