KSDB631 - SSAC Timer Delay-on-Break 230VAC 1A Adjustable 1 100s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > KSDB Series >

KSDB631

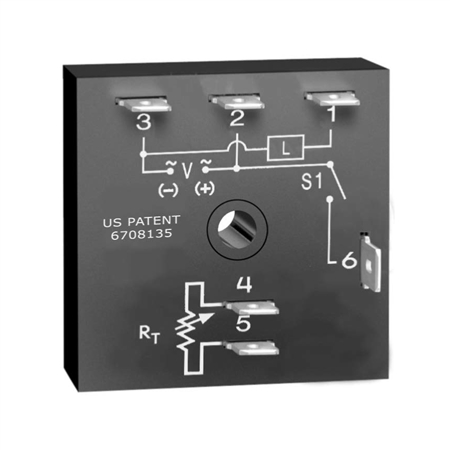

This is a family photo and may not be an accurate representation of the product.

Price: $49.03

Returnable: NOT RETURNABLE
Manufacturer SKU: KSDB631
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSDB631

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSDB631 - SSAC Timer Delay-on-Break 230VAC 1A Adjustable 1 100s 2x2

The KSDB Series Family

The KSDB is designed for general purpose commercial and industrial applications where a small, cost effective, reliable solid-state timer is required. The factory calibration for fixed time delays is within 5% of the target time delay. The repeat accuracy, under stable conditions, is 0.5% of the selected time delay. This series is designed for popular AC and DC voltages. Time delays of 0.1 seconds to 1000 minutes are available in 6 ranges. The output is rated 1A steady and 10A inrush. The modules are totally solid state and encapsulated to protect the electronic circuitry.

Operation (Delay-on-Break):
Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output energizes. The time delay begins when the initiate switch is opened. The output remains energized during timing. At the end of the time delay, the output de-energizes. The output energizes if the initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Features:

Fixed or adjustable delays from 0.1s -1000m in 6 ranges

±0.5% repeat accuracy

± 5% factory calibration

12VDC to 230VAC in 6 ranges

1A, solid-state output

Encapsulated

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Mounting bracket: P/N: P1023-6

Female quick connect:

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KSDB Series Datasheet datasheet in *.pdf format
