KSPDA2222RXE - SSAC Timer Recycling 24 240VAC SS Adjustable 1 100s On 1 100s Off

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > ProgramaCube > KSPD Series >

KSPDA2222RXE

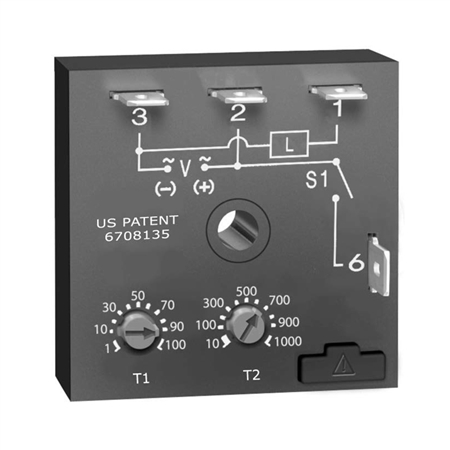

This is a family photo and may not be an accurate representation of the product.

Price: $64.38

Returnable: NOT RETURNABLE
Manufacturer SKU: KSPDA2222RXE
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSPDA2222RXE

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSPDA2222RXE - SSAC Timer Recycling 24 240VAC SS Adjustable 1 100s On 1 100s Off

The KSPD Series Family

The KSPD Series is a factory programmed module available with 1 of 12 standard dual functions. The time delays can be factory fixed, externally or onboard adjustable, or a combination of fixed and adjustable. The 1A steady, 10A inrush rated solid-state output provides 100 million operations, typical. Its microcontroller timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KSPD Series is a cost effective approach for OEM applications that require small size and long life.

Features:

Choose 1 of 12 standard dual functions

Special time ranges & functions available

Factory programmed

Microcontroller circuitry, ±0.5% repeat accuracy

1A steady, solid-state output , 10A inrush

12 to 240V in 3 options

Delays from 0.1s - 1000h in 9 ranges

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-95

P/N: P1004-95-X

Versa-knob: P/N: P0700-7

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20

Download the The SSAC Product Line catalog in *.pdf format
Download the The KSPD Series Datasheet datasheet in *.pdf format
