KSPUA2I - SSAC Timer Interval 24 240VAC SS Sw Adjustable 1 1023s 2x2

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > ProgramaCube > KSPU Series >

KSPUA2I

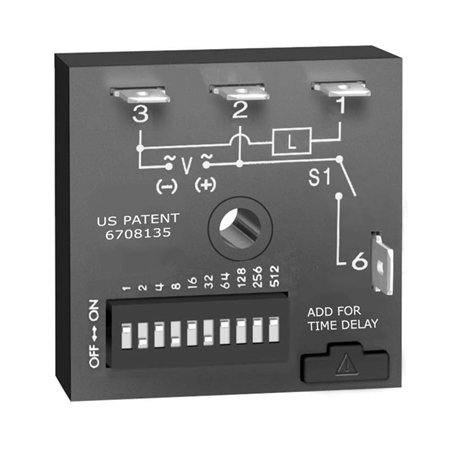

This is a family photo and may not be an accurate representation of the product.

Price: $70.65

Returnable: NOT RETURNABLE
Manufacturer SKU: KSPUA2I
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: KSPUA2I

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

KSPUA2I - SSAC Timer Interval 24 240VAC SS Sw Adjustable 1 1023s 2x2

The KSPU Series Family

The KSPU Series is a factory programmed module available in any 1 of 14 standard functions. The KSPU offers a single adjustable timer or counter function. Switch adjustment allows accurate selection of the time delay or number of counts the first time and every time. The 1A steady, 10A inrush rated solid-state output provides 100 million operations, typical. Its microcontroller timing circuit provides excellent repeat accuracy and stability. Encapsulation protects against shock, vibration, and humidity. The KSPU Series is a cost effective approach for OEM applications that require small size, solid state reliability, and accurate switch adjustment.

Features:

Choose 1 of 14 standard functions

Special time ranges & functions available

Factory programmed

Microcontroller circuitry, ±0.1% repeat accuracy

1A steady, solid-state output,

10A inrush

Accurate switch adjustment

12 to 240V in 3 options

Delays from 0.1s - 1023h

Counts 1 to 1023

Auxiliary Products:

Female quick connect:

P/N: P1015-64 (AWG 14/16)

P/N: P1015-14 (AWG 18/22)

Quick connect to screw adaptor: P/N: P1015-18

DIN rail: P/N: C103PM (Al)

DIN rail adaptor: P/N: P1023-20
