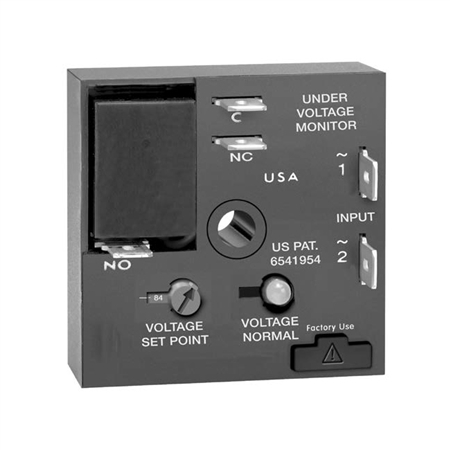

This is a family photo and may not be an accurate representation of the product.

Price: $78.89

Returnable: NOT RETURNABLE
Manufacturer SKU: KVM6

Availability: Usually Ships in 3 to 5 Days
Part Number: KVM6

Qty:

Description

KVM6 - SSAC 1 Phase Volt Mon 240VAC Relay Adjustable 2x2

The KVM Series Family

The KVM Series is a single-phase undervoltage monitor designed to protect sensitive equipment against brownout undervoltage conditions. The compact design and encapsulated construction make the KVM an excellent choice for OEM equipment.

Operation
The output relay is energized and the LED glows green when the input voltage is above the reset voltage threshold. If the input voltage drops below the undervoltage setpoint, the output relay and LED will de-energize. The output relay will remain de-energized as long as the input voltage is below the reset voltage. Reset is automatic when the input voltage returns to a normal range.

Features:

Economical single-phase brownout/ undervoltage protection
Isolated, 8A, SPDT output contacts
Protects sensitive 110 to 120VAC or 220 to 240VAC loads
Adjustable low voltage trip point
LED Indicator

Auxiliary Products:

Quick connect to screw adaptor: P/N: P1015-18
Female quick connect: P/N: P1015-64 (AWG 14/16)
DIN rail: P/N: C103PM (Al)
DIN rail adaptor: P/N: P1023-20
