LLC54AA - SSAC Liquid Level Drain Dual 120VAC Adjustable Resist #6 Low #8 High 8-PIN

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Liquid Level Controls & Alternating Relays > LLC5 Series >

LLC54AA

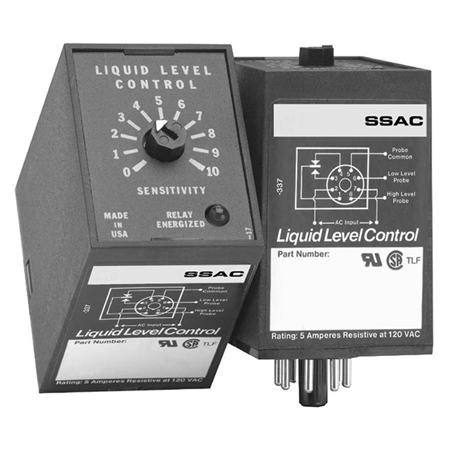

This is a family photo and may not be an accurate representation of the product.

Price: $79.32

Manufacturer SKU: LLC54AA

Quantity in Stock:10

Availability: Usually Ships in 3 to 5 Days
Part Number: LLC54AA

Qty:

Description

LLC54AA - SSAC Liquid Level Drain Dual 120VAC Adjustable Resist #6 Low #8 High 8-PIN

The LLC5 Series Family

The LLC5 provides dual probe conductive liquid level control in a convenient octal plug-in package. Models are available for fixed fill or drain operation. Isolated, pulsed DC voltage on the probes prevents electrolytic plating. Less than 1 mA of current is used to sense the presence of conductive liquid between the probes and common. On adjustable units, the sensitivity adjustment eliminates false tripping caused by floating debris and foaming agents.

Operation
Drain (Pump-Down Mode): When the liquid level rises and touches the high level probe, the output relay and LED energize and remain energized until the liquid level falls below the low level probe. The output relay and LED de-energize and remain de-energized until the liquid rises and touches the high level probe.

Fill (Pump-Up Mode): When the liquid level falls below the low level probe, the output relay and LED energize and remain energized until the liquid level rises and touches the high level probe. The output relay and LED de-energize and remain de-energized until the liquid level again falls below the low level probe.

Features:

Dual probe level control for conductive liquids
Onboard knob or fixed sensing up to 100K?
Fill or drain operation available
Select standard or diagnostic LED operation
Diagnostic LED operation reduces adjustment & troubleshooting time
24, 120, or 230VAC models are available
Isolated, 5A, SPDT ouput contacts

Auxiliary Products:

Panel mount kit: P/N: BZ1
Octal 8-pin socket: P/N: NDS-8
Hold-down clips (sold in pairs): P/N: PSC8 (NDS-8)
Electrode: P/N: PHST-38QTN
Threaded probe (24"): P/N: LLP-24

Download the The SSAC Product Line catalog in *.pdf format
pdf

Download the The LLC5 Series Datasheet datasheet in *.pdf format
