MSM10.7W6 - SSAC Timer Delay-on-Make 12VDC 0.5A 0.7s 6 inch Wires
MSM10.7W6 - SSAC
MSM10.7W6

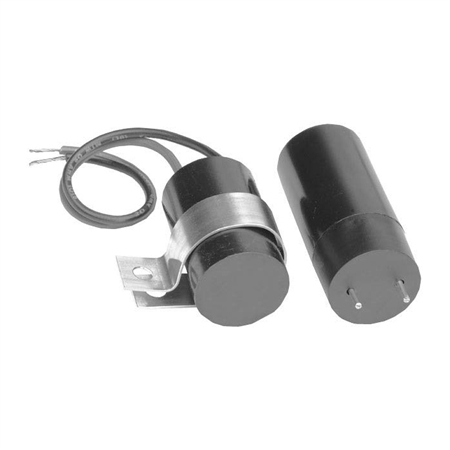

This is a family photo and may not be an accurate representation of the product.

Price: $39.21
Returnable: NOT RETURNABLE
Manufacturer SKU: MSM10.7W6
(Minimum order):  10



Availability: Usually Ships in 3 to 5 Days
Part Number: MSM10.7W6
Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

MSM10.7W6 - SSAC Timer Delay-on-Make 12VDC 0.5A 0.7s 6 inch Wires

The MSM Series Family

The MSM replaces bi-metal type timing with reliable solid-state circuitry. There are no moving parts to arc or wear. It is a cost effective solution for OEM designers. It is available for printed circuit board mounting or surface mounting with a removable bracket and wire leads. The MSM offers immediate reset on removal of power.

Operation (Delay-on-Make):
The time delay begins upon application of input voltage. The output is de-energized before and during the time delay. At the end of the time delay, the output energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.

Features:

  • Printed circuit mount or wire leads
  • Fixed delays from 0.05 - 180s
  • ± 5% repeat accuracy
  • ± 15% factory calibration
  • Two-wire series connection with the load
  • Fast reset
