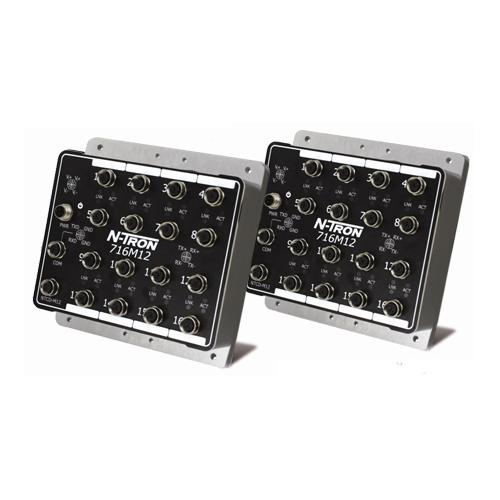

The N-TRON 716M12-HV IP67 Rated Fully Managed Industrial Ethernet Switch has an IP67 rated hardened metal enclosure, fully manageable features, and is the high voltage model with 40-160 VDC.

• Rugged Industrial Panel mount Enclosure (optional DIN Rail kit available)
• Dustproof
• Protection against low/high pressure water jets
• Temporary immersion in water
• Sixteen 10/100BaseTX Ports
• M12 D-Coded Female 4 Pin Connectors
• Ideal for use as Ring Manager with -30ms Ring Healing
• -40-C to 85-C Operating Temperature
• ESD and Surge Protection Diodes on all Ports
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Redundant Power Inputs
• 8000 MAC Addresses
• Configurable Bi-Color Fault Status LED

• SNMP v1, v2, v3 and Web Browser Management
• Configuration backup via Optional N-Tron Configuration Device
• Detailed Ring Map and Fault Location Charting
• N-Ring Technology with ~30ms Healing
• N-Link Redundant N-Ring Coupling
• RSTP - IEEE 802.1D
• N-View OPC Monitoring
• IGMP Auto Configuration
• 802.1Q tag VLAN and Port VLAN
• 802.1p QoS
• Port QoS
• DSCP
• EtherNet/IP CIP Messaging
• 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
• Port Trunking
• Port Mirroring
• 802.1d, 802.1w, 802.1D RSTP
• DHCP Server, Option 82 Relay, Option 61, and IP Fallback
• Local Port IP Addressing
• Port Security - MAC Address Based
