ORB120A160 - SSAC Timer Delay-on-Break 120VAC Relay SPDT FXD 60s Open Board

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ORB Series >

ORB120A160

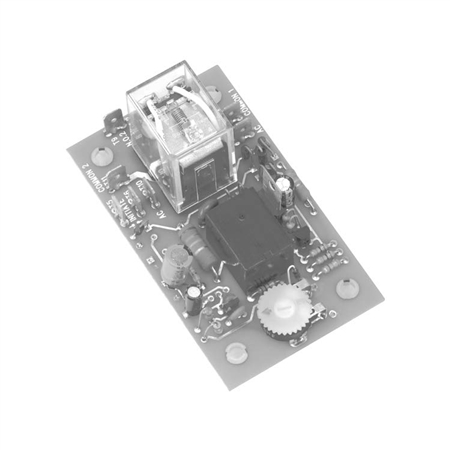

This is a family photo and may not be an accurate representation of the product.

Price: $61.80

Returnable: NOT RETURNABLE
Manufacturer SKU: ORB120A160
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ORB120A160

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ORB120A160 - SSAC Timer Delay-on-Break 120VAC Relay SPDT FXD 60s Open Board

The ORB Series Family

The ORB Series' open PCB construction offers the user good economy without sacrificing performance and reliability. The output relay is available in isolated, 10A, DPDT or SPDT forms. The time delay may be ordered as factory fixed, onboard knob, or external adjustment. All connections are 0.25 in. (6.35 mm) male quick connect terminals.

Operation (Delay-on-Break):
Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output relay energizes. The time delay begins when the initiate switch is opened (trailing edge triggered). The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the time delay and output.

Features:

Low cost open PCB construction

10A, DPDT or SPDT output contacts

Line voltage initiation

Delays from 0.05s - 300s in 5 ranges

±2% repeat accuracy

±10% factory calibration

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-12

P/N: P1004-12-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The ORB Series Datasheet datasheet in *.pdf format
