ORS120A150SD - SSAC Timer Single Shot 120VAC Relay DPDT FXD 50s Open Board

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Timers > Dedicated > ORS Series >

ORS120A150SD

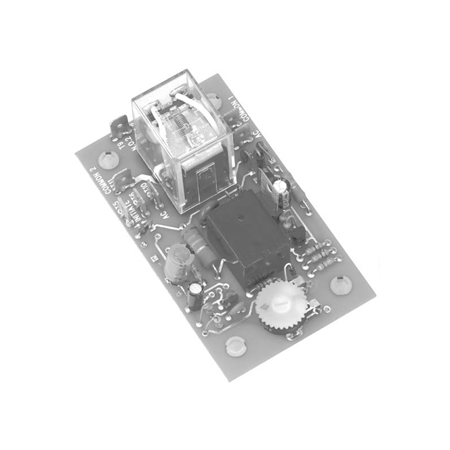

This is a family photo and may not be an accurate representation of the product.

Price: $61.80

Returnable: NOT RETURNABLE
Manufacturer SKU: ORS120A150SD
(Minimum order): 10

Availability: Usually Ships in 3 to 5 Days
Part Number: ORS120A150SD

Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

ORS120A150SD - SSAC Timer Single Shot 120VAC Relay DPDT FXD 50s Open Board

The ORS Series Family

The ORS Series' open PCB construction offers the user good economy without sacrificing performance and reliability. The output relay is available in isolated, 10A, DPDT or SPDT forms. The time delay may be ordered as factory fixed, onboard knob, or external adjustment. All connections are 0.25 in. (6.35 mm) male quick connect terminals.

Operation (Single Shot):
Input voltage must be applied before and during timing. Upon momentary or maintained closure of the initiate switch (leading edge triggered), the output relay energizes for a measured interval of time. At the end of the time delay, the output de-energizes. Opening or reclosing the initiate switch during timing has no affect on the time delay. The output will energize if the initiate switch is closed when input voltage is applied.
Reset: Reset occurs when the time delay is complete and the initiate switch is opened. Loss of input voltage resets the time delay and output.

Features:

Low cost open PCB construction

Momentary or maintained initiation

10A, DPDT or SPDT output contacts

Delays from 0.05s - 300s in 5 ranges

±2% repeat accuracy

±10% factory calibration

Auxiliary Products:

External adjust potentiometer:

P/N: P1004-12

P/N: P1004-12-X

Female quick connect: P/N: P1015-64 (AWG 14/16)

Quick connect to screw adaptor: P/N: P1015-18

Versa-knob: P/N: P0700-7

Download the The SSAC Product Line catalog in *.pdf format
Download the The ORS Series Datasheet datasheet in *.pdf format
