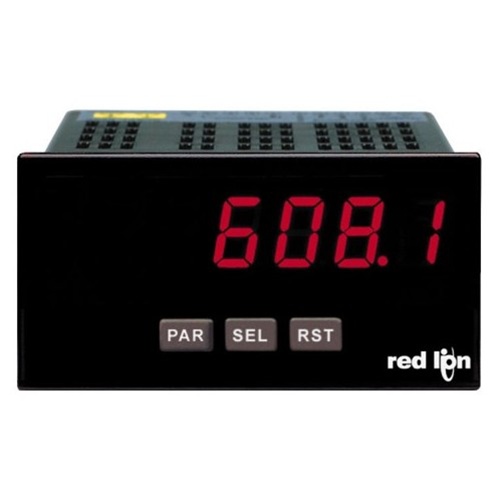

PAXLC800 - Red Lion Controls Pax Lite Meters - Eight Digit Counter

PAXLC800 - Red Lion Controls
PAXLC800

Price: $249.00
Manufacturer SKU: PAXLC800


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PAXLC800
Qty:

Description

The PAX Lite Counter, Model PAXLC800, is a versatile totalizing counter that can be adapted to a wide variety of counting, measuring, and positioning readout applications. This unit has an 8-digit 0.4" (10.1 mm) high LED display.

The unit features a programmable scale factor, front panel and remote reset, store, inhibit, and a count rate of 25 KHz, while offering an economical solution to any totalizing need. The PAXLC800 accepts digital inputs from a variety of sources including switch contacts, NPN-OC and TTL outputs, as well as most standard Red Lion sensors. The input can be scaled to display any desired unit of measure by simply using the programmable scale factor. The meter can accept bi-directional and uni-directional signals.

The meter is programmed through the front panel buttons and the use of DIP switches. The Down Arrow Key will also function as a front panel display reset. Once the front panel programming is complete, the buttons can be disabled by a DIP switch setting.

The meter has been specifically designed for harsh industrial environments. With a NEMA 4X/IP65 sealed bezel and extensive testing to meet CE requirements, the meter provides a tough yet reliable application solution.


PAXLC800
