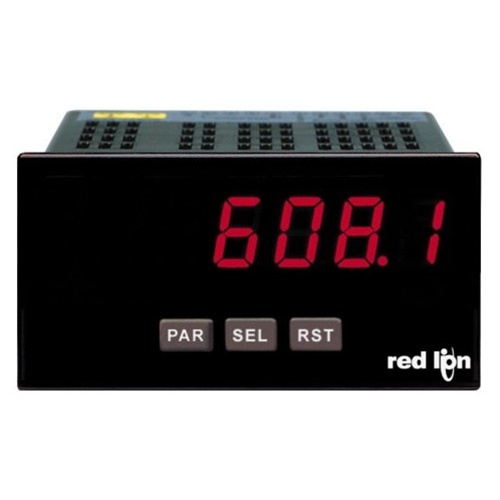

PAXLIT00 - Red Lion Controls Pax Lite Meters - 5 Amp Current Meter

PAXLIT00 - Red Lion Controls
PAXLIT00

Price: $239.00
Manufacturer SKU: PAXLIT00


Free Shipping
Availability: Normally Stocked
Part Number: PAXLIT00
Qty:

Description

The Model PAXLIT00 5 Amp AC Current Meter provides the capability of measuring large AC currents. The internal current shunt in the PAXLIT00 can measure up to 5 Amps AC current directly. Using an external current transformer, AC currents of up to 1,999 Amps can be measured and displayed.

The PAXLIT00 can be scaled, using the scaling potentiometer, to display between 200 and 1999 when measuring full scale current. Using the DIP switch selectable decimal points, the display can be customized for direct readout for practically any application.

The 3 1/2-digit bi-polar display (minus sign displayed when current is negative) features a 0.56" high, 7-segment LEDs for easy reading. The meter is also available with custom units label capability. Using the PAX label kit (PAXLBK30), the selected label is installed behind the panel, keeping it safe from washdown or other environmental conditions. A DIP switch is used to control the backlight for the units label.

The meters have a NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE requirements, allowing the meter to provide a tough yet reliable application solution.
