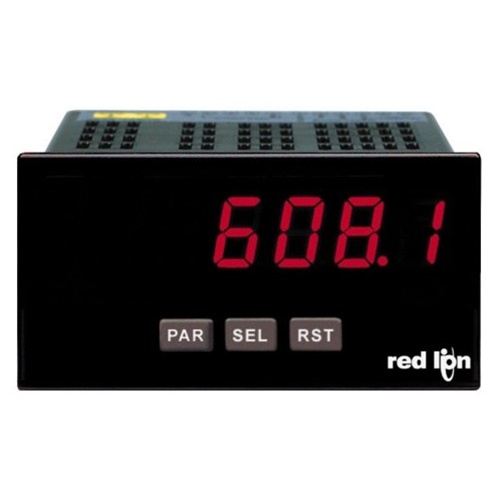

PAXLSG00 - Red Lion Controls Pax Lite Meters - Strain Gage Meter

PAXLSG00 - Red Lion Controls
PAXLSG00

Price: $337.00
Manufacturer SKU: PAXLSG00



Availability: Usually Ships in 3 to 5 Days
Part Number: PAXLSG00
Qty:

Description

The Model PAXLSG00 expands the PAX Lite capabilities into the indication of pressure, load, force, and other parameters measured with strain gages. The unit features broad range scaling and can be used with a wide variety of strain gage resistances and bridge configurations. A built-in excitation source is jumper selectable for 5 or 10 VDC @ 120 mA maximum, and can power up to four full 350 ohm bridges in load averaging applications. Although designed primarily for strain-gage indication, the PAXLSG00 is also ideal for single-ended or differential millivolt input applications, with full-scale input ranges from 0 to 10 mV thru 0 to 2 VDC. Adjustable scaling and offset allow direct readout in nearly any engineering unit.

The meter has a NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE requirements, allowing the meter to provide a tough yet reliable application solution.
