PAXLVA00 - Red Lion Controls Pax Lite Meters - AC Volt Meter

PAXLVA00 - Red Lion Controls
PAXLVA00

Price: $221.00
Manufacturer SKU: PAXLVA00



Availability: Usually Ships in 3 to 5 Days
Part Number: PAXLVA00
Qty:

Description

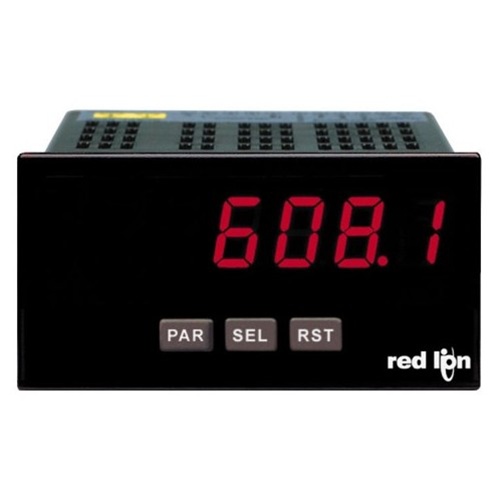

The PAX Lite AC Volt Meter is a premium quality instrument designed for tough industrial applications. With multi-range capability, built-in provision for scaling, and DIP switch selectable decimal points, this meter offers the ultimate in application flexibility. The meter can provide direct readout from pressure, speed or flow transducers, or any other variable that can be translated to voltage. The built-in scaling allows the display to be scaled to the desired engineering unit.

The 3 1/2 -digit bi-polar display (minus sign displayed when voltage is negative) features a 0.56" high, 7-segment LEDs for easy reading. The meter is also available with custom units label capability. Using the PAX label kit (PAXLBK30), the selected label is installed behind the panel, keeping it safe from washdown or other environmental conditions. A DIP switch is used to control the backlight for the units label. The meters have a NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE requirements, allowing the meter to provide a tough yet reliable application solution.
