PC-102CICI-LT - SymCom 2-Channel Leak Temperature Detector 120V 2 Form C DIN Rail
PC-102CICI-LT - SymCom
PC-102CICI-LT

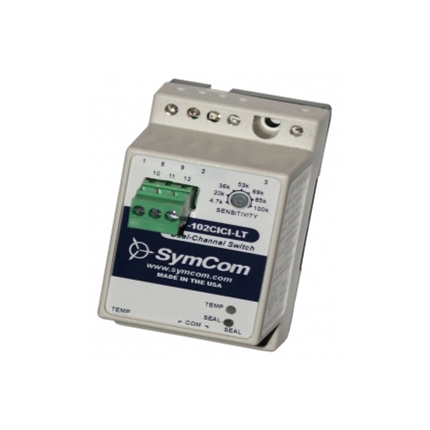

This is a family photo and may not be an accurate representation of the product.

Price: $151.52
Manufacturer SKU: PC-102CICI-LT



Availability: Usually Ships in 3 to 5 Days
Part Number: PC-102CICI-LT
Qty:

Description

PC-102CICI-LT - SymCom 2-Channel Leak Temperature Detector 120V 2 Form C DIN Rail

The PC-xxx-LLC-CZ & PC-xxx-LLC-GM Family
Liquid level control relays used to control conductive liquid pumping operations in a pump-up or pump-down application. The units come in two different voltage ranges (see specs below).

The units have an adjustable sensitivity knob (4.7k to 100k ohms) that is set according to the resistance level at which you want the probes (sold separately) to sense the conductive liquid. The units have a built-in debounce time delay that prevents the relay from energizing if the probe resistance momentarily goes above or below the sensitivity setpoint (due to liquid splashing in the tank).

The units operate their internal relay based on inputs from a high and low probe and a common reference (when a conductive tank is used) or common probe (when a non-conductive tank is used).

  • Compatible with Gems' Series 16M general purpose control PC-xxx-LLC-CZ
  • Compatible with Crouzet's PNR & PNRU series liquid level control

Features:

  • One unit serves pump-up and pump-down applications
  • Adjustable sensitivity knob (4.7 to 100Kohms)
  • Debounce time delay (2 seconds)
  • Single or dual probe inputs (plus a common reference)

Auxiliary Products:

  • 8-pin octal socket P/N: CT0T08-PC
pdfDownload the The SymCom Product Line catalog in *.pdf format
pdfDownload the SymCom Overview brochure in *.pdf format
pdfDownload the Controllers datasheet in *.pdf format
