PCA-6114P10-0B2E - Advantech PCA-6114P10-0B2E 14-Slot Backplane (2 ISA, 10 PCI, 2 PICMG), rev B2

PCA-6114P10-0B2E - Advantech
PCA-6114P10-0B2E

Price: $225.00
Manufacturer SKU: PCA-6114P10-0B2E



Availability: Usually Ships in 3 to 5 Days
Part Number: PCA-6114P10-0B2E
Qty:

Description

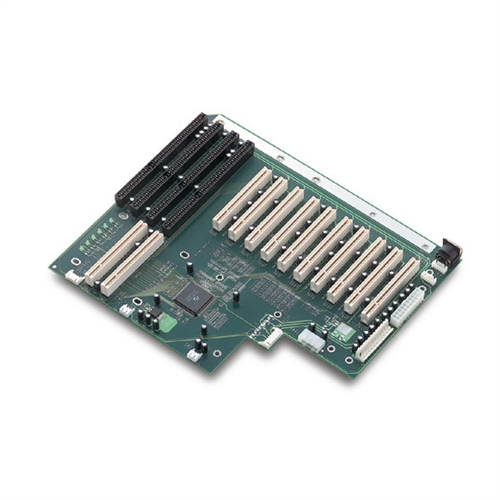

PCA-6114P10-0B2E - Advantech 14-Slot Backplane (2 ISA, 10 PCI, 2 PICMG), rev B2
The PCA-6114P10-0B2E is a 14-slot single segment ISA/ PCI/ PICMG passive backplane with 2 ISA, 10 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech's IPC-616, IPC-615 along with IPC-611, IPC-610 and ACP-4000 chassis.

14-slot 2 ISA, 10 PCI, 2 PICMG Backplanes
  • Segments: 1
  • Slots: 2 ISA, 10 PCI, 2 PICMG
  • Size: 315 x 260 mm (12.4" x 10.24")
  • PCI bridge: Pericom PI7C8150BMAE
  • Primary PCI: 3 slots;Secondary PCI: 7 slots
  • Ordering Information: PCA-6114P10-0B2E
pdfDownload the PCA-6114P10-0B2E brochure in *.pdf format
