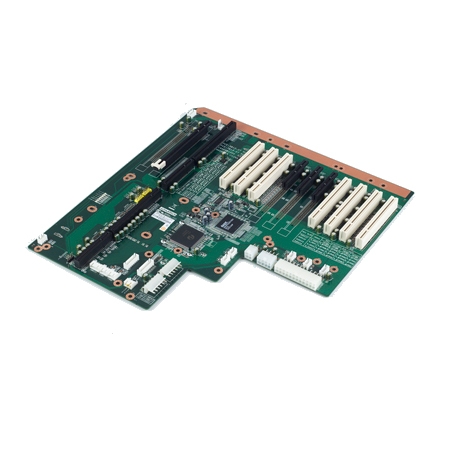

PCE-5B12D-04A1E - Advantech PCE-5B12D-04A1E 13-slot PCIMG 1.3 Backplane; 2 Segments. Each Segment: 1 CPU Card, 1 PCIe x16, 4 PCI Slots for PCE-5120, PCE-5124 and PCE-7214

PCE-5B12D-04A1E - Advantech
PCE-5B12D-04A1E

Manufacturer SKU: PCE-5B12D-04A1E


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCE-5B12D-04A1E
Call, Email, or Live Chat for Pricing or to Order

Description

PCE-5B12D-04A1E - Advantech 13-slot PCIMG 1.3 Backplane; 2 Segments. Each Segment: 1 CPU Card, 1 PCIe x16, 4 PCI Slots for PCE-5120, PCE-5124 and PCE-7214. Compatible with 14 slot chassis IPC-610-L, IPC-610-H, IPC-610-F, IPC-611, IPC-615, IPC-630, ACP-4000, ACP-4320 and ACP-4362
Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech's SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

12-slot, dual segments BP for 14-slot chassis.
  • 12-slot BP for 14-slot chassis
  • Segments: 2
  • Each segment:
  • -- One CPU card slot
  • -- PCIe slot: One x16
  • -- PCI-X slot: N/A
  • -- PCI slot: Four 32/33
  • -- Compatible with IPC chassis: ACP-4010
pdfDownload the PCE-5B12D-04A1E brochure in *.pdf format
