PCI-1671UP-AE - Advantech CIRCUIT BOARD, GPIB Interface Card

PCI-1671UP-AE - Advantech
PCI-1671UP-AE

Price: $663.30
Manufacturer SKU: PCI-1671UP-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1671UP-AE
Qty:

Description Technical Specs

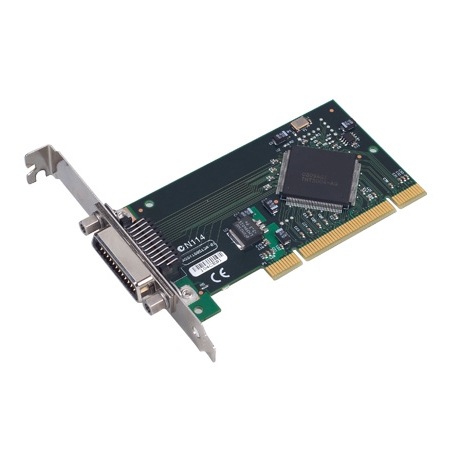

PCI-1671UP-AE - Advantech CIRCUIT BOARD, GPIB Interface Card
The PCI-1671UP IEEE-488 interface converts any PCI bus personal computer into an instrumentation control and data acquisition system. Connect up to 14 instruments using standard IEEE-488 cables such as the PCL-10488-2, 2 meter IEEE-488 interface cable. The PCI-1671UP transfers data over the GPIB at rates in excess of 1.5 million bytes per second using the maximum IEEE-488 specification cable length (2 meters times the # of devices). A 1,024-word FIFO buffer and the advanced REP-INSW ISR data transfer method provide the horsepower required to then transfer the data between the GPIB board and the host computer. The high-speed state machine also provides byte-to-word packing and unpacking, and because words carry twice the information that bytes do, packed data requires fewer bus cycles to transfer the same GPIB information.The PCI-1671UP adheres to ANSI/IEEE Standard 488-1978. Often referred to as the IEEE-488.2 bus, GPIB bus or HP-IB bus, the GPIB (General Purpose Interface Bus) is a standard for instrumentation communication and control for instruments from manufacturers the world over. The GPIB provides handshaking and interface communications over an 8-bit data bus employing 5 control and 3 handshake signals. Equipped with PCI-1671UP, a personal computer can control GPIB instruments, gather data from GPIB test equipment, or become a data acquisition station in a GPIB system.

IEEE-488.2 Interface Low Profile Universal PCI Card
  • IEEE 488.2 Standard interface
  • Complete Talker/Listener/Controller
  • Industry standard 32-bit PCI bus
  • Data transfer rates over 1.5 MB/s
  • 1,024-word FIFO buffer
  • High-Speed State Machine Bus Manager
  • 7 Interrupt lines, shared interrupt capability
  • Transparent interrupt enabling/disabling
  • Includes GPIB-Library software
  • Low profile MD1 size
pdfDownload the PCI-1671UP-AE brochure in *.pdf format
