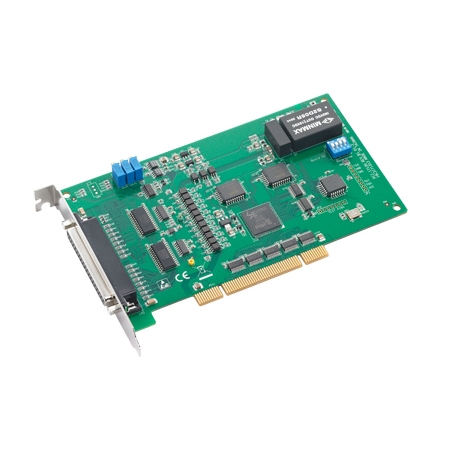

PCI-1713U-BE - Advantech CIRCUIT BOARD, 100k, 12bit, 32ch Isolated AI Univ. PCI Card

PCI-1713U-BE - Advantech
PCI-1713U-BE

Price: $479.50
Manufacturer SKU: PCI-1713U-BE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1713U-BE
Qty:

Description Technical Specs

PCI-1713U-BE - Advantech CIRCUIT BOARD, 100k, 12bit, 32ch Isolated AI Univ. PCI Card
The PCI-1713 is an isolated high-speed analog input card for the PCI bus. It provides 32 analog input channels with a sampling rate up to 100 kS/s, 12-bit resolution and isolation protection of 2500 VDC.

100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
  • 2,500 VDC isolation protection
  • 32-ch single-ended or 16-ch differential or a combination of analog input
  • 12-bit resolution for A/D conversion
  • Programmable gain for each input channel
  • Onboard FIFO memory: 4,096 samples;
  • Software, internal or external pacer sampling modes supported
  • Universal PCI bus
  • BoardID™ switch
pdfDownload the PCI-1713U-BE brochure in *.pdf format
