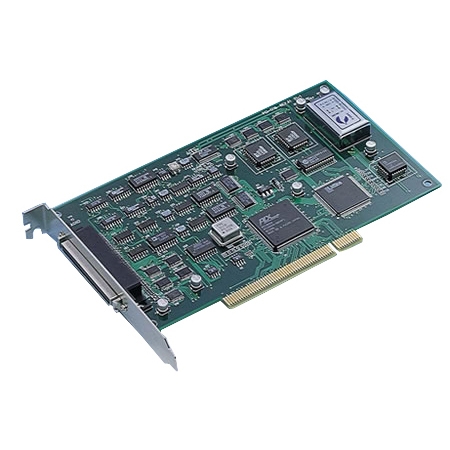

PCI-1716L-AE - Advantech CIRCUIT BOARD, 250k,16bit High-resolution Multifunction w/o AO

PCI-1716L-AE

Price: $574.31

Manufacturer SKU: PCI-1716L-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1716L-AE

Qty:

Description

Technical Specs

PCI-1716L-AE - Advantech CIRCUIT BOARD, 250k,16bit High-resolution Multifunction w/o AO

The PCI-1716 and PCI-1716L Family
PCI-1716 and PCI-1716L are powerful high-resolution multifunction cards for the PCI bus. They feature a 250 kS/s 16-bit A/D converter, and an onboard 1K sample FIFO buffer for A/D. The cards can also have up to sixteen single-ended or eight differential A/D input channels or a combination of these; two 16-bit D/A output channels, 16 digital input/output channels, and one 10 MHz 16-bit counter channel. PCI-1716 and PCI-1716L provide specific functions for different user requirements.

250 kS/s, 16-bit, 16-ch PCI Multifunction Card

16 single-ended or 8 differential or a combination of analog inputs
16-bit A/D converter, with up to 250 kHz sampling rate
Onboard FIFO memory (1,024 samples)
Auto-calibration
PCI-Bus mastering data transfer
2 analog output channels
16-ch digital input and 16-ch digital output
Onboard programmable counter
BoardID™ switch

Download the PCI-1716L-AE brochure in *.pdf format
