PCI-1718HDU-AE - Advantech PCI-1718HDU-AE 100kS/s, 12-bit, 16-chMultiF`N Card (PCL-818HD compatible)

Home > Manufacturers > A - D > Advantech > Data Acquisition (DAQ) & Control > Data Acquisition Boards > PCI Cards > Multifunction >

PCI-1718HDU-AE - Advantech CIRCUIT BOARD, 100k 12-bit 16-ch Muntifunction Card

PCI-1718HDU-AE

Price: $486.50

Manufacturer SKU: PCI-1718HDU-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1718HDU-AE

Qty:

Description

Technical Specs

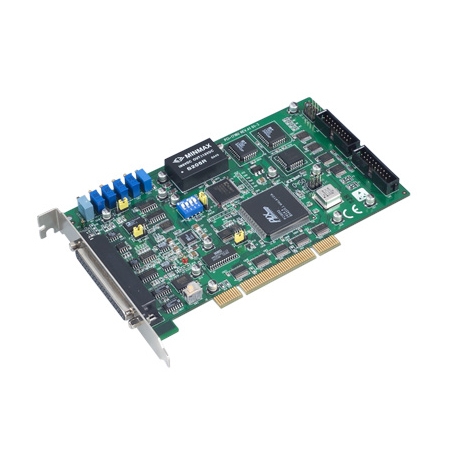

PCI-1718HDU-AE - Advantech CIRCUIT BOARD, 100k 12-bit 16-ch Muntifunction Card

The PCI-1718 series and the PCL-818H Family
The PCI-1718 series and the PCL-818H series are 100 kS/s multifunction data acquisition cards that offer the fi ve most desired measurement and control functions: 12-bit A/D conversion, 12-bit D/A conversion, digital input, digital output, and counter/timer. With 3-way compatibility, migration is possible from ISA bus to PCI bus. The HG cards have the same specifi cations as the HD cards, but also offer a special high-gain programmable instrument amplifi er for reading very low input signals.

100 kS/s, 12-bit, 16-ch Universal PCI Multifunction Card

ISA-Compatible with PCL-818HD
16-ch single-ended or 8-ch differential analog input
12-bit A/D converter, with up to 100 kHz sampling rate
Programmable gain
Automatic channel/gain scanning
Onboard FIFO memory (1,024 samples)
One 12-bit analog output channel
16-ch digital input and 16-ch digital output
Universal PCI bus (support 3.3 V or 5 V PCI bus signal)
BoardID™ switch

Download the PCI-1718HDU-AE brochure in *.pdf format
