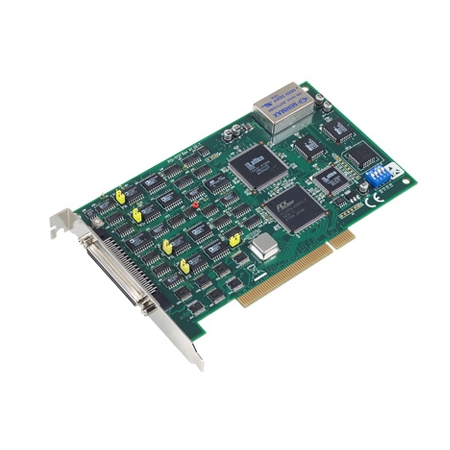

PCI-1721-AE - Advantech CIRCUIT BOARD, 12bit, 4ch High-speed Analog Output Card

PCI-1721-AE

Price: $629.00

Manufacturer SKU: PCI-1721-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1721-AE

Qty:

Description

Technical Specs

PCI-1721-AE - Advantech CIRCUIT BOARD, 12bit, 4ch High-speed Analog Output Card
PCI-1721 is an advanced high-speed analog output card for the PCI bus, and each of analog output channels are equipped with a 12-bit, double-buffered DAC. It features many powerful and unique functions, like a waveform output function with 10 MHz maximum update rate, auto-calibration and a BoardID switch. PCI-1721 is an ideal solution for industrial applications where high-speed continuous analog output or real-time waveform output functions are required.

12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O

10 MHz maximum digital update rate
PCI-bus mastering for data transfer
Auto calibration function
Four analog output channels with 1,024 samples FIFO buffer
A 12-bit DAC is equipped for each of analog output channels
Real-time waveform output function with internal/external pacer
Synchronized output function
Flexible output types and range settings
Keeps the output settings and values after system hot reset
16-ch DI/O and one 10 MHz 16-bit resolution counter
BoardID™ switch

Download the PCI-1721-AE brochure in *.pdf format
