PCI-1727U-AE - Advantech CIRCUIT BOARD, 14bit, 12ch Synchronized Analog Output Card

PCI-1727U-AE

Price: $653.20

Manufacturer SKU: PCI-1727U-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1727U-AE

Qty:

Description

Technical Specs

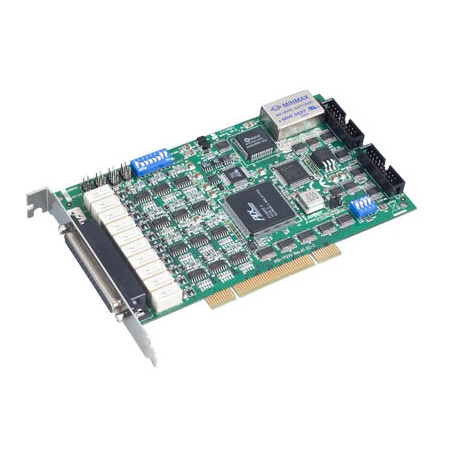

PCI-1727U-AE - Advantech CIRCUIT BOARD, 14bit, 12ch Synchronized Analog Output Card
PCI-1727U provides twelve 14-bit analog output channels, and is pin-complatible with the ISA PCL-727 card for easy migration. It supports both +/-10 V and 0 ~ 20 mA current loop (sink). The card's on board DC-to-DC converter ensures the full 10 V D/A output is always available.

Each analog output channel has a built-in fuse to protect the circuit, PC and the external devices. PCI-1727U is an ideal, economical solution for the applications which require multiple PID control loops. In addition to its analog outputs, PCI-1727U provides 16 TTL DI and 16 TTL DO channels that are easily applied with industrial on/off control applications.

14-bit, 12-ch Analog Output Universal PCI Card with 32-ch Digital I/O

12 independent analog output channels
Fuse on each channel
Universal PCI for 5 V and 3.3 V support
BoardID™ switch
Synchronized output function
