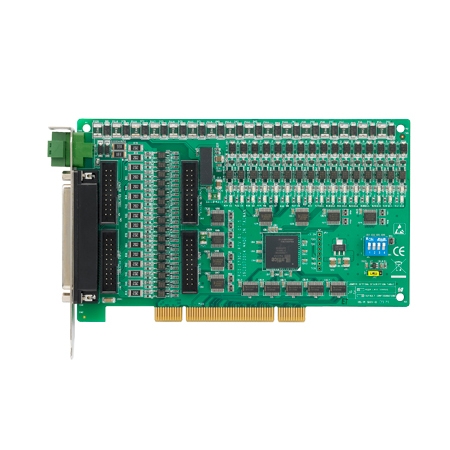

PCI-1730U-BE - Advantech CIRCUIT BOARD, 32ch Iso. DIO w/ 32ch TTL DIO Universal PCI Card

PCI-1730U-BE

Price: $169.00

Manufacturer SKU: PCI-1730U-BE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1730U-BE

Qty:

Description

Technical Specs

PCI-1730U-BE - Advantech CIRCUIT BOARD, 32ch Iso. DIO w/ 32ch TTL DIO Universal PCI Card

The PCI-1730U, PCI-1733, and PCI-1734 Family
PCI-1730U, PCI-1733, and PCI-1734 offer isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL digital I/O channels on PCI-1730U.

32-ch Isolated Digital I/O Universal PCI Card

ISA-compatible with PCL-730
32-ch TTL DI/O (16-ch digital input,16-ch digital output)
High output driving capacity
Interrupt handling capability
2 x 20-pin connectors for isolated DI/O channels
2 x 20-pin connectors for TTL DI/O channels
D-type connector for isolated input and output channels
High-voltage isolation on output channels

Download the PCI-1730U-BE brochure in *.pdf format
