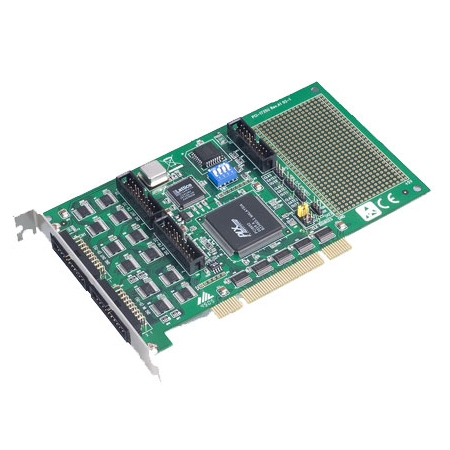

PCI-1735U-AE - Advantech CIRCUIT BOARD, 64ch TTL Digital I/O Card w/Counter
The PCI-1735U digital I/O and counter card is PC-compatible add-on card with 32 digital input channels, 32 digital output channels and three programmable counter/timer channels. Their digital I/O channels are TTL-compatible and use 74LS244 drive/buffer circuits to provide high output driving capacity. These buffered circuits also require lower input loading current than regular TTL circuits. The cards' 8254 programmable counter/timer provides three flexible 16-bit counter/timer channels. You can generate waves and pulses by programming the 8254. Jumper settings determine the clock crystal frequency. The card also includes a breadboard area perfect for customized circuits.

64-ch Digital I/O and Counter Universal PCI Card

ISA-Compatible with PCL-720+
32 TTL-level digital input channels
32 TTL-level digital output channels
High-output driving capacity
Low-input loading
3 programmable counter/timer channels
User configurable clock source
Breadboard area for custom circuits
