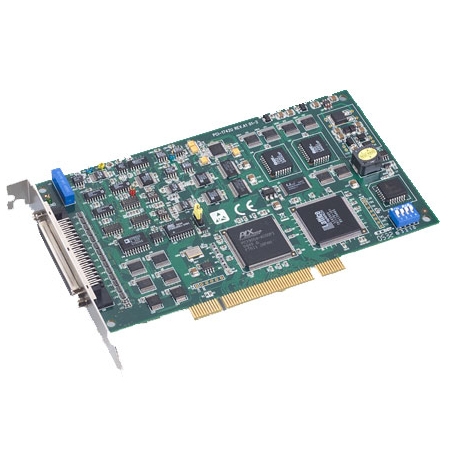

PCI-1742U-AE - Advantech CIRCUIT BOARD, 16-bit, 1MS/s Multifunction Card

PCI-1742U-AE

Price: $880.00

Manufacturer SKU: PCI-1742U-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1742U-AE

Qty:

Description

Technical Specs

PCI-1742U-AE - Advantech CIRCUIT BOARD, 16-bit, 1MS/s Multifunction Card

The PCI-1741U and PCI-1742U Family
PCI-1741U and PCI-1742U are powerful high-resolution multifunction data acquisition cards supporting universal PCI bus. The sampling rate is up to 1 MS/s (PCI-1742U) or 200 kS/s (PCI-1741U). Coupled with the 16-bit A/D converter, they are suitable for most data acquisition applications. PCI-1741U and PCI-1742U provides 16 single-ended or 8 differential analog input channels and 16 digital input/output channels. PCI-1741U provides one 16-bit D/A output channel, while PCI-1742U provides two 16-bit D/A output channels.

1 MS/s, 16-bit, 16-ch Universal PCI Multifunction Card

16-ch single-ended or 8-ch differential analog input
16-bit A/D converter, with up to 200 kHz sampling rate
Onboard FIFO memory (1,024 samples)
Auto calibration
1 x 16-bit analog output channel
16-ch digital input and 16-ch digital output
Universal PCI bus (support 3.3 V or 5 V PCI bus signal)
Onboard programmable counter
BoardID™ switch
