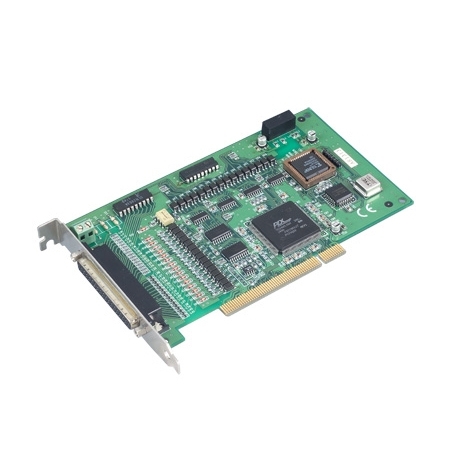

PCI-1750SO-AE - Advantech 32-ch Isolated Digital I/O (PNP DO) and Counter PCI Card
PCI-1750/1750SO offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC,
and dry contact support, PCI-1750/1750SO is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750/1750SO corresponds to
a bit in a PC I/O port. This makes PCI-1750/1750SO very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC, so you can
then easily configure the card with software.

32-ch Isolated Digital I/O and 1-chCounter PCI Card

16 isolated DI and 16 isolated DO channels
High voltage isolation on all isolated channels (2,500 VDC)
High source current on isolated output channels (200 mA/channel)
Supports dry contact or 5 ~ 50 VDC isolated inputs
Interrupt handling capability
Timer/counter interrupt capability
