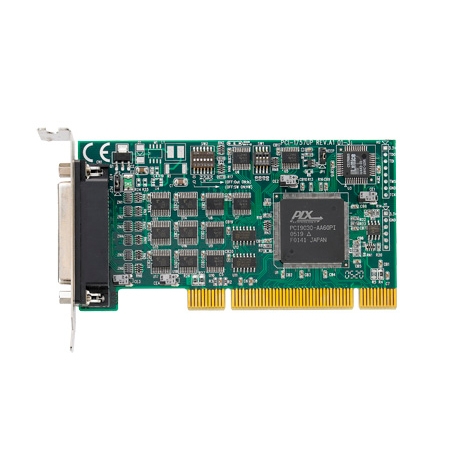

PCI-1757UP-AE - Advantech CIRCUIT BOARD, 24ch TTL Digital I/O Low-profile Card

PCI-1757UP-AE

Price: $126.00

Manufacturer SKU: PCI-1757UP-AE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCI-1757UP-AE

Qty:

Description

Technical Specs

PCI-1757UP-AE - Advantech CIRCUIT BOARD, 24ch TTL Digital I/O Low-profile Card
PCI-1757UP is a 24-channel digital I/O low profile PCI card that meets the PCI standard REV.2.2 (universal PCI expansion card). The card also works with 3.3 V and 5 V PCI slots, and provides you with 24 parallel digital input/output channels that emulate mode 0 of the 8255 PPI chip. However, the buffered circuits offer a higher driving capability than the 8255.

24-ch Digital I/O Low Profile Universal PCI Card

Low profile PCI form factor
Universal PCI bus
24 TTL level digital I/O channels
Emulates mode 0 of 8255 PPI
Buffered circuits provide higher driving capability
Interrupt handling capability
Output status read-back
I/O configurable by software or on board DIP switch
Keeps the output settings and values after system hot reset
BoardID™ switch
Convenient DB25 connector
Supports both dry and wet contact

Download the PCI-1757UP-AE brochure in *.pdf format
