PCL-725-AE - Advantech CIRCUIT BOARD, 8ch Relay & 8ch Isolated DI Card

PCL-725-AE - Advantech
PCL-725-AE

Price: $104.00
Manufacturer SKU: PCL-725-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCL-725-AE
Qty:

Description Technical Specs

PCL-725-AE - Advantech CIRCUIT BOARD, 8ch Relay & 8ch Isolated DI Card

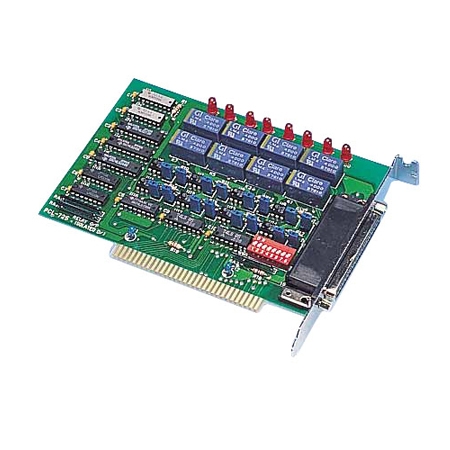

The PCL-725 relay actuator and isolated D/I card provides eight electromechanical SPDT relays and eight optically-isolated digital inputs on a half-size card. Its eight on-board SPDT relays are ideal for applications such as device On/Off control or low power switching. A red LED next to each relay shows its On/Off status for easy monitoring. The PCL-725’s eight optically-isolated D/I channels are ideal for digital input in noisy environments or with floating potentials. You can configure each input channel individually for either isolated or non-isolated input by setting jumpers. An on-board DB-37 connector provides access to all input and output channels.

8-ch Relay and 8-ch Isolated Digital Input ISA Card
  • 8 relay output channels and 8 isolated digital input channels
  • LED indicators to show activated relays
  • 4 Form C and 4 Form A type relay output channels
  • Male DB37 matching connector included
  • Output status read-back
pdfDownload the PCL-725-AE brochure in *.pdf format
