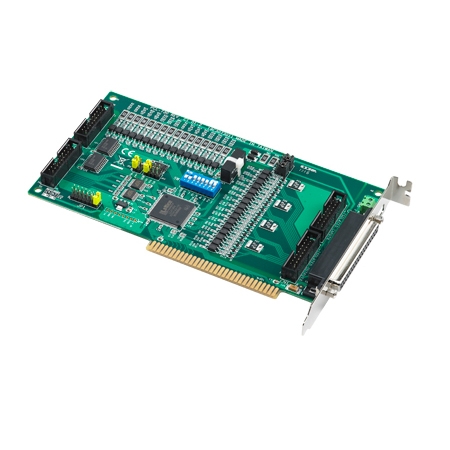

PCL-730-CE - Advantech CIRCUIT BOARD, 32ch Isolated Digital I/O Card w/32ch TTL DIO

PCL-730-CE - Advantech
PCL-730-CE

Price: $160.00
Manufacturer SKU: PCL-730-CE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCL-730-CE
Qty:

Description Technical Specs

PCL-730-CE - Advantech CIRCUIT BOARD, 32ch Isolated Digital I/O Card w/32ch TTL DIO
The PCL-730 offers isolated digital input channels as well as isolated digital output channels with isolation protection up to 2,500 VDC, which makes them ideal for industrial applications where high-voltage isolation is required. There are also 32 TTL DIO channels.

32-ch Isolated Digital I/0 ISA Card
  • 32 isolated DIO channels (16 inputs and 16 outputs)
  • 32 TTL-level DIO channels (16 inputs and 16 outputs)
  • High output driving capacity
  • Interrupt capability
  • Two 20-pin connectors for isolated digital I/O channels and two for TTL digital I/O channels
  • D-type connector for isolated input and output channels
  • High-voltage isolation on output channels
pdfDownload the PCL-730-CE brochure in *.pdf format
