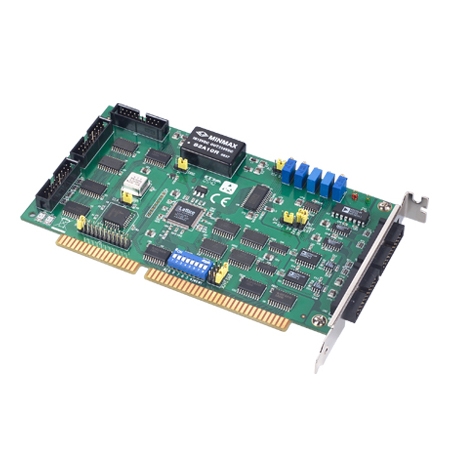

PCL-812PG-CE - Advantech CIRCUIT BOARD, 30k, 12bit Multifunction Card

PCL-812PG-CE

Price: $344.00

Manufacturer SKU: PCL-812PG-CE

Availability: Usually Ships in 3 to 5 Days
Part Number: PCL-812PG-CE

Qty:

Description

Technical Specs

PCL-812PG-CE - Advantech CIRCUIT BOARD, 30k, 12bit Multifunction Card
PCL-812PG is a multifunction analog and digital I/O card that features the five most desired measurement and control functions for PC/AT and compatible systems: A/D conversion, D/A conversion, digital input, digital output and vounter/timer. This half-size card neatly packages 16 12-bit analog input channels, two 12-bit analog output channels, 16 digital input channels, 16 digital output channels and a programmable counter/timer.

In addition to all the features listed above, PCL-812PG offers the convenience of programmable analog input ranges, where the analog input range can be switched by software commands instead of DIP switches. PCL-812PG also delivers convenience and maximum resolution for applications that need different gains for different channels or different gains for different stages of a process. Comprehensive software support, numerous I/O options and a wide range of available daughterboards make the PCL-812PG ideal for industrial applications that require a combination of analog and digital I/O.

30 kS/s, 12-bit, 16-ch ISA Multifunction Card

16 single-ended analog inputs
12-bit A/D converter, with up to 30 kHz sampling rate
Programmable gain
Two 12-bit analog output channels
16 digital inputs and 16 digital outputs
Onboard programmable counter
A/D with DMA or interrupt

Download the PCL-812PG-CE brochure in *.pdf format
