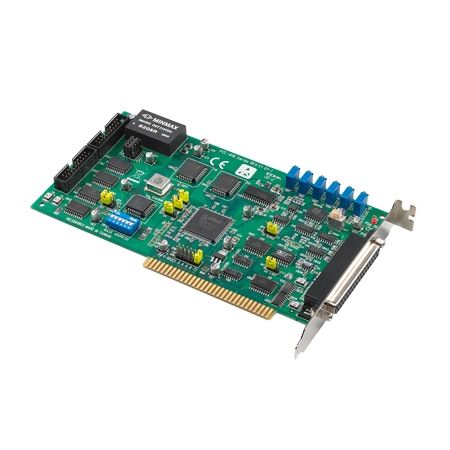

PCL-818HD-CE - Advantech CIRCUIT BOARD, 100k, 12bit Multifunction Card

PCL-818HD-CE - Advantech
PCL-818HD-CE

Manufacturer SKU: PCL-818HD-CE


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PCL-818HD-CE
Call, Email, or Live Chat for Pricing or to Order

Description Technical Specs

PCL-818HD-CE - Advantech CIRCUIT BOARD, 100k, 12bit Multifunction Card

The PCL-818 Family

The PCL-818L series was designed for entry-level models to the PCL-818 series. The cards have been designed with the cost-sensitive customer in mind, but still offers the same functions as the rest of the series, except that they have a 40 kHz sampling rate and only accepts bipolar inputs. They are fully software and connector compatible with the PCL-818HD and PCL-818HG. This lets you upgrade your applications to these higher performance cards without hardware or software changes.

100 kS/s, 12-bit, 16-ch ISA Multifunction Card
  • 16 single-ended or 8 differential analog inputs
  • 12-bit A/D converter, with up to 100 kHz sampling rate
  • Programmable gain
  • Automatic channel/gain scanning
  • Onboard FIFO memory (1024 samples, PCL-818HD/HG only)
  • One 12-bit analog output channel
  • 16 digital inputs and 16 digital outputs
  • Onboard programmable counter
pdfDownload the PCL-818HD-CE brochure in *.pdf format
