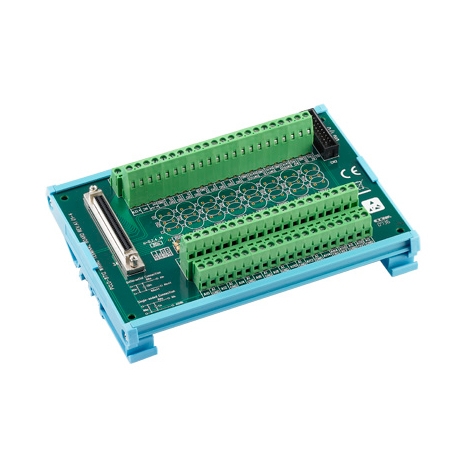

PCLD-8712-AE - Advantech PCLD-8712-AE Wiring Terminal BoardFor PCI-1712/1733 (RoHS)

PCLD-8712-AE - Advantech
PCLD-8712-AE

Price: $117.00
Manufacturer SKU: PCLD-8712-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCLD-8712-AE
Qty:

Description

PCLD-8712-AE - Advantech Wiring Terminal BoardFor PCI-1712/1733 (RoHS)
The PCLD-8710 is designed to match multifunction cards with 68-pin SCSI-II connectors, such as the PCI-1710U/UL, PCI-1710HGU, PCI-1711U/UL, PCI-1716/L cards. This screwterminal board also includes cold junction sensing circuitry that allows direct measurements from thermocouple transducers. Together with software compensation and linearization, every thermocouple type can be accommodated. The PCLD-8712 Screw-terminal Board provides convenient and reliable signal wiring for the PCI-1712/L of which has a 68-pin SCSI-II connector.
Due to its special PCB layout you can install passive components to construct your own signal-conditioning circuits. The user can easily construct a low-pass filter, attenuator or current shunt converter by adding resistors and capacitors on board’s circuit pads.

DIN-rail Wiring Terminal for PCI-1712/L
  • Low-cost screw-terminal with 68-pin SCSI-II connector
  • Reserved space for signal-conditioning circuits such as low-pass filter, voltage attenuator and current shunt
  • Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
  • DIN-rail mounting case for easy mounting
  • Supports PCI-1710U/UL, PCI-1710HGU, PCI-1711U/UL, PCI-1716/L (PCLD-8710) and PCI-1712/1712L (PCLD-8712)
pdfDownload the PCLD-8712-AE brochure in *.pdf format
