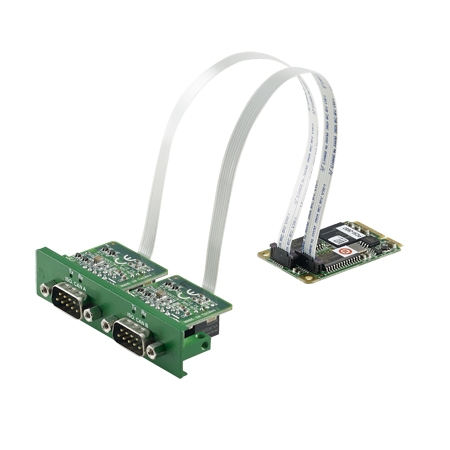

PCM-26D2CA-AE - Advantech SJA1000 CANBus, CANOpen, DB9 x 2
The PCM-26 Series Family
The PCM-26 series is categorized as Industrial Communication with Fieldbus Protocol modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2. including Isolated / Non-Isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange during the management and machine level of automation application, Zigbee module as an IoT terminal or controller and PoE function for smart camera in detect inspection application of production. This is a flexible design that enables customers to customize their features which meet iDoor Technology.
- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- Supports Advantech CANOpen Protocol Library
- Operates two separate CAN networks simultaneously
- High speed transmission up to 1 Mbps
- I/O address automatically assigned by PCIe plug & play
- Supports 32-bits/64-bits Windows 2000/XP/Vista/7, and Linux 2.4/2.6
- Optical isolation protection of 2500 VDC ensures system reliability
- Includes Windows® DLL library and examples
- Supports Embedded Automation Computers UNO-2200/2300/2400 series
- Supports Embedded DIN-Rail Controller UNO-1200/1300/1400 series
- Supports Embedded BOX IPC UNO-3000 series
- Supports Embedded Automation Panel Computers TPC-xx82/xx72/xx80 series
 Download the PCM-26D2CA-AE brochure in *.pdf format
|
General
|
Bus Type
|
PCI Express Mini Card Revision 1.2 |
|
Certification
|
CE, FCC class A |
|
Connectors
|
2x Male DB9 |
|

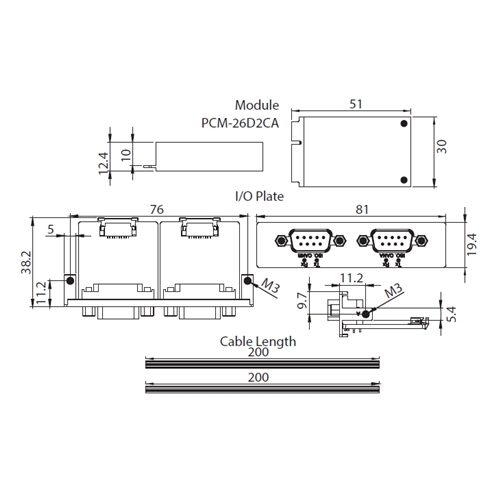

Dimensions
|
Module: 51 x 30 x 12.4mm (2" x 1.18" x 0.49")
I/O Plate: 81 x 19.4 x 41mm (3.19" x 0.76" x 1.61") |
| Power Consumption |
Typical : +5V @ 400mA |
| |
|
|
|
|
|
Communications
|
CAN Controller
|
NXP SJA-1000 |
|
CAN Transceiver
|
NXP 82C251 |
|
Protocol
|
CAN 2.0 A/B |
|
Signal Support
|
CAN_H, CAN_L |
|
Speed
|
1Mbps |
| CAN Frequency |
16MHz |
| Termination Resistor |
120 ohm (selected by jumper) |
| |
|
|
|
|
|
Protection
|
Isolation Protection
|
2,500 V |
| ESD Protection |
15 V |
| EFT Protection |
2,500 V |
| Surge Protection |
1,000 VDC |
| |
|
|
|
|
|
Software
|
CAN Bus Driver |
Windows 2000/XP/Vista/7 (x86 and x64), Windows CE 5.0/6.0, Linux, QNX |
| CANopen Software |
Windows 2000/XP/Vista/7 (x86 and x64), Windows CE 5.0/6.0 |
| |
|
|
|
|
|
Environment
|
Humidity(Operating)
|
5-95% RH, non-condensing |
|
Operating Temperature
|
-20 ~ 60°C (-4 ~ 140°F) |
|
Storage Temperature
|
- 40 ~ 85°C ( -40 ~ 185°F) |
|
|
|
 |
|
 |
|
