PCM-3614-AE - Advantech PCM-3614-AE 4-port RS-422/485High-Speed Module

PCM-3614-AE - Advantech
PCM-3614-AE

Price: $201.30
Manufacturer SKU: PCM-3614-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCM-3614-AE
Qty:

Description

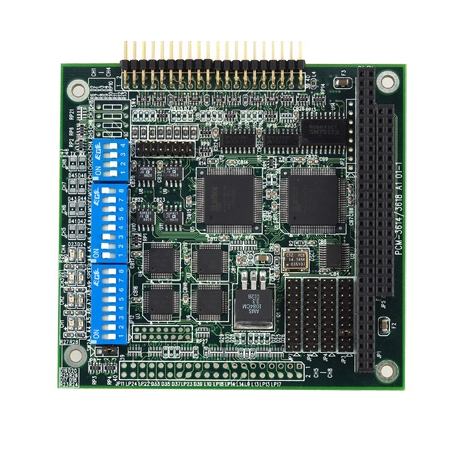

PCM-3614-AE - Advantech 4-port RS-422/485High-Speed Module
The PCM-3614 is a PC/104-compatible module with four individually configurable RS-422/485 ports. It works with PC/104 CPU modules to extend additional RS-2422/485 ports. The PCM-3614 also features lots of functions such as high transmission speed of 921.6 kbps, shared IRQ and more. It also provides high-performance 16C550 UART communication chip with 16-byte FIFO to reduce CPU load. This makes the PCM-3614 especially suitable for multitasking environments.

4-port RS-422/485 High-speed PC/104 Module
  • Four independent RS-422/485 serial ports
  • Transmission speeds up to 921.6 Kbps
  • Shared IRQ settings for each port
  • Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
  • LED indicators: TX, RX
  • Standard PC ports: COM1, COM2, COM3, COM4 compatible
pdfDownload the PCM-3614-AE brochure in *.pdf format
