PCM-3753I-AE - Advantech PCM-3753I-AE 96-ch Digital I/O PCI-104 Module

PCM-3753I-AE - Advantech
PCM-3753I-AE

Price: $387.20
Manufacturer SKU: PCM-3753I-AE



Availability: Usually Ships in 3 to 5 Days
Part Number: PCM-3753I-AE
Qty:

Description

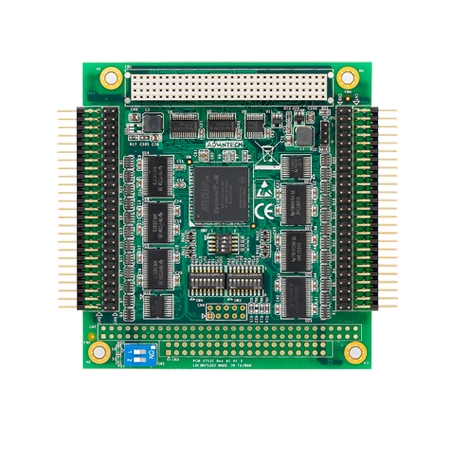

PCM-3753I-AE - Advantech 96-ch Digital I/O PCI-104 Module

PCM-3753I is a 96-bit digital I/O card for the PC-104 Plus bus. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer a higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports: A0, B0, C0, A1, B1, C1, A2, B2, C2, A3, B3 and C3. You can configure each port as input or output via software.

96-ch Digital I/O PCI-104 Module
  • Compact size with robust design
  • Supports dry/wet contact
  • Keeps the last output value after system hot reset
  • Interrupt handling capacity
  • “Pattern match” and "change of state" interrupt functions
  • Output status read-back
  • Interrupt output pin for simultaneously triggering external devices
pdfDownload the PCM-3753I-AE brochure in *.pdf format
