PCR12 - SSAC Photo Electric Control 230VAC without Box
PCR12 - SSAC
PCR12

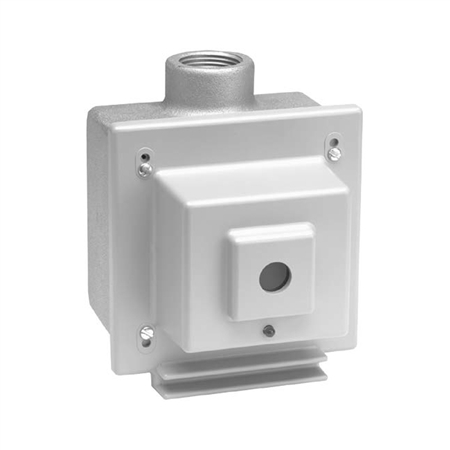

This is a family photo and may not be an accurate representation of the product.

Price: $356.23
Returnable: NOT RETURNABLE
Manufacturer SKU: PCR12
(Minimum order):  10



Availability: Usually Ships in 3 to 5 Days
Part Number: PCR12
Qty:

Description

*** The Minimum Order Quantity of this Part is 10.

PCR12 - SSAC Photo Electric Control 230VAC without Box

The PCR Series Family

The PCR Series of photo control is a combination of precision electronic circuitry, electromechanical output, and unique molded plastic housing. Designed and built to meet the demands of the most rigorous requirement of tower and obstruction lighting control, each unit is factory calibrated to meet FAA and FCC specifications. Electronic circuit, output contactor, and terminal block are all contained within front plastic housing. Edge support molded into the bottom edge of housing allows easy wiring of new and existing installations. Available with or without cast aluminum junction box.

Operation:
When the amount of light sensed falls below the actuation level for energization, the output relay energizes. Conversely, when the amount rises above the actuation level for de-energization, the output relay de-energizes.

Features:

  • Automatic lighting circuit operation: dusk to dawn
  • Meets FAA/FCC requirements for obstruction lighting
  • Two 20A load contacts
  • Direct replacement of popular photo controls
  • Time delay eliminates contact chatter
pdfDownload the The SSAC Product Line catalog in *.pdf format
pdfDownload the The PCR Series Datasheet datasheet in *.pdf format
