PHS120A10 - SSAC AC Phase Control 120VAC 10A 2x2
PHS120A10 - SSAC
PHS120A10

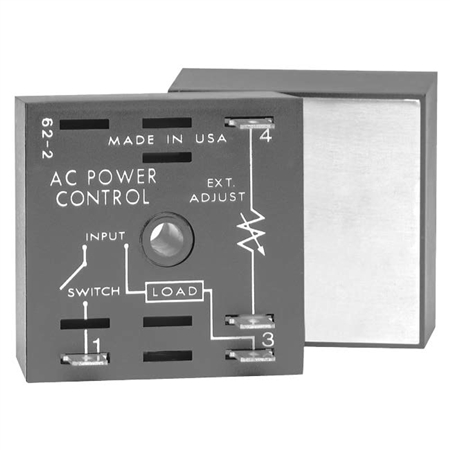

This is a family photo and may not be an accurate representation of the product.

Price: $43.14
Manufacturer SKU: PHS120A10



Availability: Usually Ships in 3 to 5 Days
Part Number: PHS120A10
Qty:

Description

PHS120A10 - SSAC AC Phase Control 120VAC 10A 2x2

The PHS Series Family

The PHS Series is an ideal method of changing lamp intensity, varying the speed of a fan/motor, or controlling the temperature of a heater. The effective output voltage is adjusted with an accessory external potentiometer suitable for line voltage applications.

Operation:
Upon application of input voltage, effective output voltage can be varied by changing the external resistance value. As the external resistance increases, the effective output voltage decreases. The inverse is also true.

Features:

  • External adjustment - 230VAC rated potentiometer
  • 120 or 230VAC input voltages available
  • Up to 20A steady state - 200A inrush
  • Single hole surface mounting

Auxiliary Products:

  • Versa-knob: P/N: P0700-7
  • Quick connect to screw adaptor: P/N: P1015-18
  • Female quick connect:
    • P/N: P1015-13 (AWG 10/12)
    • P/N: P1015-64 (AWG 14/16)
    • P/N: P1015-14 (AWG 18/22)
  • Potentiometers:
    • P/N: P1004-174 (100k? 1W)
    • P/N: P1004-175 (200k? 2W)
pdfDownload the The SSAC Product Line catalog in *.pdf format
pdfDownload the The PHS Series Datasheet datasheet in *.pdf format
