PLS120A - SSAC 3 Phase Reverse Phase Monitor 120VAC 8-PIN

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Voltage Monitors & Phase Monitors > PLS Series >

PLS120A

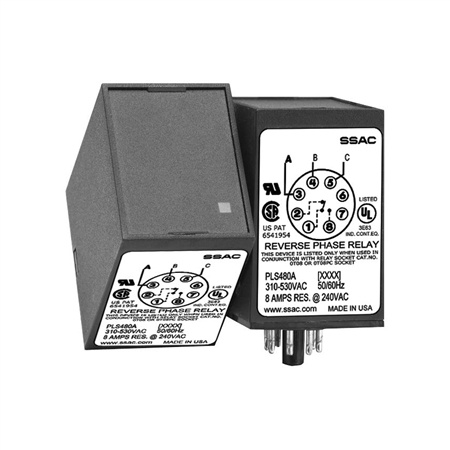

This is a family photo and may not be an accurate representation of the product.

Price: $86.64

Returnable: NOT RETURNABLE
Manufacturer SKU: PLS120A

Availability: Usually Ships in 3 to 5 Days
Part Number: PLS120A

Qty:

Description

PLS120A - SSAC 3 Phase Reverse Phase Monitor 120VAC 8-PIN

The PLS Series Family

The PLS Series is a low cost phase sensitive control that provides an isolated contact closure when the proper A-B-C phase sequence is applied. Protects sensitive 3-phase equipment and equipment operators from reverse rotation. Designed to be compatible with motor overloads or other 3-phase equipment protection devices. Protection for equipment control centers where frequent reconnection or electrical code makes reverse rotation protection essential. Examples include: mobile refrigerated containers, construction equipment, hoists, pumps, conveyors, elevators and escalators.

Operation:
The internal relay and LED are energized when the phase sequence is correct. The output relay will not energize if the phases are reversed. Reset is automatic upon correction of the fault.

Features:

Protects against phase reversal
Low cost protection, one unit for all sized motors
3-wire connection for dela or wye systems
Octal base connect - industry standard wiring
Isolated, SPDT output contacts
Factory calibrated - no adjustments required

Auxiliary Products:

Panel mount kit: P/N: BZ1
Octal 8-pin socket: P/N: OT08PC
3-phase fuse block/disconnect: P/N: FH3P
2 Amp fuse: P/N: P0600-11
DIN rail: P/N: C103PM (Al)
