PXU11A30 - 1/8 CNTL, RLY,RLY,485,USR,AC

PXU11A30 - Red Lion Controls
PXU11A30

Price: $183.00
Manufacturer SKU: PXU11A30


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PXU11A30
Qty:

Description

PXU11A30 - 1/8 CNTL, RLY,RLY,485,USR,AC

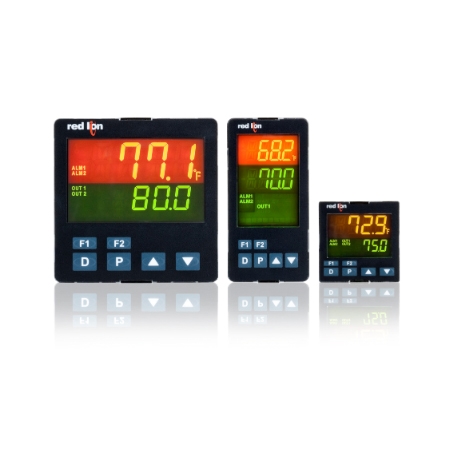

The PXU series is the newest addition to the Red Lion PID controller portfolio, offering outstanding control in a small form-factor for industrial environments.

Available in 1/16, 1/8 and 1/4 DIN models, our PXU PID controllers accept a wide variety of thermocouple and RTD sensor inputs to meet varying application requirements. Featuring one of the industry's largest dual line 4-digit displays, the PXU allows for simultaneous viewing of temperature/process and setpoint values. The PXU also offers on demand auto-tuning for easy set up and provides two control outputs, which can be individually configured for reverse or direct applications using front panel push-button or Crimson® software.

With IP65 ingress protection, flush-mounting installation and easy-to-read displays, our robust PID controllers deliver the reliability and ease of use required for temperature and process control applications.

Applications
  • Food & Beverage
  • Factory Automation
  • Manufacturing
  • Plastic Extrusion
Product Highlights
  • Full PID Control
  • Dual Relay Alarms
  • Universal Inputs (Temperature or Process)
  • UL Listed, 61010-1 Approved
Features & Benefits
  • Universal Inputs
    • Thermocouple
    • RTD
    • 0-10 VDC
    • 4 - 20 mA (0 - 50 mA)
  • Full PID Control
    • On demand auto-tuning
    • Independently configured outputs
  • Easy Programming
    • Front panel push-button or Crimson software
  • AC Powered
    • 100 to 240 VAC
  • Reduced Case Depth
  • IP 65 Ingress Protection
pdfDownload the PXU Datasheet brochure in *.pdf format
pdfDownload the PSU User Manual in *.pdf format
pdfDownload the PXU Installation Guide in *.pdf format
