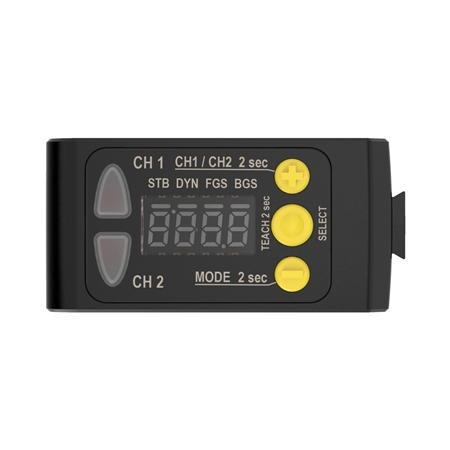

Sensing Mode (General)ProximitySensing Mode (Detailed)Background/Foreground SuppressionHousing StyleRectangularPrimary Housing MaterialABSLaser ClassificationClass 2Input/OutputDiscreteIndicatorDisplay; LED(s)Analog Resolution/Discrete Repeatability95 mm to 300 mm: +/-0.5 mm; 300 mm to 1000 mm: +/- 0.25% of range;1000 mm to 2000 mm: +/- 0.5% of rangeMax Sensing Distance (mm)2000Minimum Sensing Distance (mm)95Sensing BeamVisible Red LaserPower Supply10-30 V dcDelay at Power-up (ms)2500Sensing Beam Wavelength (nm)650AdjustmentsPush Button; Remote TeachTemperature Effect (mm/°C)< +/- 0.5 mm/°C < 500 mm,< +/- 1.0 mm/°C at < 1000 mm, < +/- 2.0 mm/°C at < 2000 mmConnectionIntegral QDQD Type/Cable LengthM12 (Euro) requires mating cordsetNumber of Pins4VibrationMIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).Mechanical ShockMIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operatingOutput Saturation Voltage NPN Outputs< 2.5 V @ 50 mAOutput Saturation Voltage PNP Outputs< 2.5 V @ 50 mAMax Discrete (Switched) Output (mA)50Discrete (Switched) Outputs2 NPN/PNP ConfigurableOutput ProtectionProtected against continuous overload and short circuitIP RatingIP67Storage Temperature (°C)-25 to 70Max Operating Temperature (°C)50Min Operating Temperature (°C)-10Max Op. Relative Humidity Non-Condensing (%)95 at 50°CWindow MaterialPMMAWarm-up Time (minutes)10Minimum Response Time (ms)3Spot Size (@ Reference Distance)6.0 mm x 3.6 mm @ 2000 mmMinimum Window Size (mm)1Discrete Output Hysteresis (mm)Automatically adjustedLaser ControlYesMax Ambient Light (Lux)up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mmPower/Current Consumption (exclusive of load)< 1 WSupply Protection CircuitryProtected against reverse polarity and transient overvoltagesFeature: Remote TeachYesFeature: Clear Object DetectionYesFeature: Timing (Hold/Delay)YesFeature: Chemical ResistantNoFeature: Pump-in/ Pump-outYesIO LinkYesRS-232NoRS-422NoRS-485NoSSINoWirelessNo1-wire Serial InterfaceNoProfibusNo
