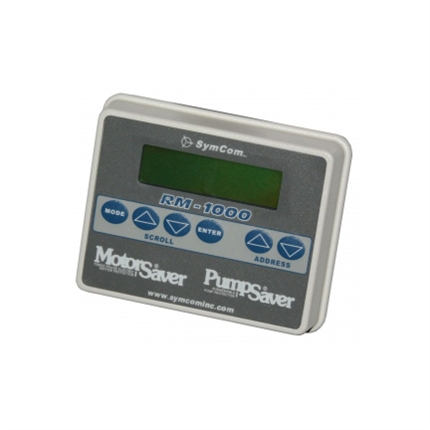

RM-1000-3R - SymCom Remote Monitor for Up to 16 Devices NEMA 3R Only
The RM-1000 Family
is a motor-monitoring device to be used in conjunction with SymCom's Model 777 family of products (excluding the P1 Series), 77C family of products and the Model 601 voltage monitors, via Modbus protocol with a communications module. The RM-1000/777 motor management system combines unsurpassed electronic motor protection and critical, user-friendly, motor monitoring.
The RM-1000 can monitor up to 16 MotorSaver® and/or PumpSaver ® units through an RS-485 network using Modbus RTU protocol. A second communication port allows monitoring and control of up to 99 MotorSaver® and/or PumpSaver® units from a computer, PLC, DCS or SCADA system and can be accessed from the host computer or PLC with the RM-1000 acting as a repeater for any of its motor protectors. In addition to the monitoring functions, the RM-1000 can be used to reset a tripped MotorSaver® or PumpSaver®.
The RM-1000 is easily mounted remotely and improves safety for service and operations personnel by allowing them to control and monitor the device without opening the electrical cabinet. Using the RM-1000 is a simple, cost-effective method for aiding compliance with arc flash safety regulations. The enclosure and keypad assembly is water and ultraviolet light resistant. The enclosure is NEMA 3R or NEMA 4X (optional) rated. The RM-1000 and RM-1000 NEMA 4 also carry a UL Type 12 rating, whereas the RM-1000-3R does not carry the UL Type 12 rating due to added weep holes. The added weep holes in the RM-1000-3R make it suitable for applications subjected to condensing moisture/humidity.
Features:
- Displays:
- Individual line currents and average current
- Current unbalance
- Individual phase voltages and average voltage
- Voltage unbalance
- Present fault trip reason and restart timer status
- Last four faults
- MotorSaver ® and/or PumpSaver ® setpoints
- Run-hours on each motor
- Warning of pending (imminent) faults
- Controls:
- Reset run-hour meter
- Reset MotorSaver ® or PumpSaver ®
- Clear last fault in MotorSaver ® or PumpSaver ®
- Change setpoints from the RM-1000
- Convenience:
- Power from RS485MS-2W communications module
- Monitor up to 16 777s with one display
- NEMA 3R outdoor rated
- Secondary steel enclosure available (see pg 65 for details)
Auxiliary Products:
- P/N: 777-P2, P/N: 777-KW/HP-P2
- Communication Modules: P/N: RS485MS-2W, P/N: CIO-MB, P/N: CIO-120-MB
- P/N: RM-1000-ENCL
- Solutions Software P/N: Solutions-D, P/N: Solutions-M
