SIR2B20B4 - SSAC Solid State Relay 120VAC 20A NC Input 90 150VAC/Dc

Home > Manufacturers > P - S > SSAC > Timers & Flashers > Solid-State Relays > SIR1 & SIR2 Series >

SIR2B20B4

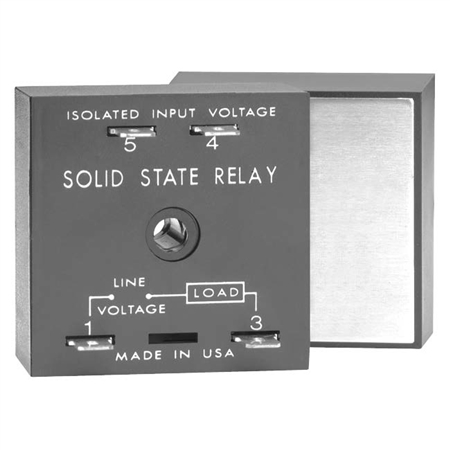

This is a family photo and may not be an accurate representation of the product.

Price: $66.80

Manufacturer SKU: SIR2B20B4

Availability: Usually Ships in 3 to 5 Days
Part Number: SIR2B20B4

Qty:

Description

SIR2B20B4 - SSAC Solid State Relay 120VAC 20A NC Input 90 150VAC/Dc

The SIR1 & SIR2 Series Family

The SC3/SC4 Series are solid-state 3 or 4 channel, chasers designed for sequential three or four circuit flashing of incandescent lamp loads. Unlike electromechanical chasers, there are no contacts to arc, wear, and eventually fail. Fixed or adjustable rates of 30 to 300 operations per minute.

Operation
Sequential 3 or 4 circuit flashing of incandescent loads with equal time delays for each load. Upon application of input voltage, Load 1 is energized. At the end of the time delay, Load 1 de-energizes and Load 2 energizes. At the end of the time delay, Load 2 de-energizes and Load 3 energizes. This cycle continues until input voltage is removed.
Reset: Removing input voltage resets the unit and cycle.

Features:

SIR1 - Random switching for inductive loads
SIR2 - Zero voltage switching for resistive& incandescent loads
Normally open or normally closed output
3 - 20A with up to 200A inrush
Encapsulated circuitry
Optically isolated output
0.25 in. (6.35 mm) terminals with single hole mounting

Auxiliary Products:

Quick connect to screw adaptor: P/N: P1015-18
Female quick connect:
- P/N: P1015-13 (AWG 10/12)
- P/N: P1015-64 (AWG 14/16)
- P/N: P1015-14 (AWG 18/22)

Download the The SSAC Product Line catalog in *.pdf format
pdf

Download the The SIR1 & SIR2 Series Datasheet datasheet in *.pdf format
