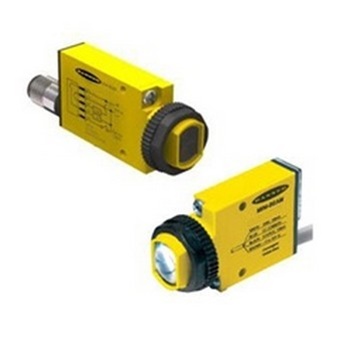

SM31RPD - Banner Engineering MINI-BEAM: Clear Plastic Detection Receiver, Range: 0 - 0.3 m; Input: 10-30V dc, Output: Bipolar: 1 NPN; 1 PNP, 2 m (6.5 ft) cable

SM31RPD - Banner Engineering
SM31RPD

Price: $171.00
Manufacturer SKU: SM31RPD
Manufacturer ID: 26536



Availability: Usually Ships in 3 to 5 Business Days
Part Number: SM31RPD
Qty:

Description

SM31RPD - Banner Engineering MINI-BEAM: Clear Plastic Detection Receiver, Range: 0 - 0.3 m; Input: 10-30V dc, Output: Bipolar: 1 NPN; 1 PNP, 2 m (6.5 ft) cable

Overview

  • 10 to 30V dc supply voltage with bipolar NPN/PNP outputs
  • Available in opposed, opposed clear plastic, polarized and non-polarized retroreflective, convergent, diffuse and divergent diffuse, and glass or plastic fiber optic sensing modes
  • Convergent and fiber optic models with infrared or visible red, blue or green LED light source, depending on application
  • Opposed-mode models for clear plastic detection
  • 18 mm threaded barrel or side mounting options
