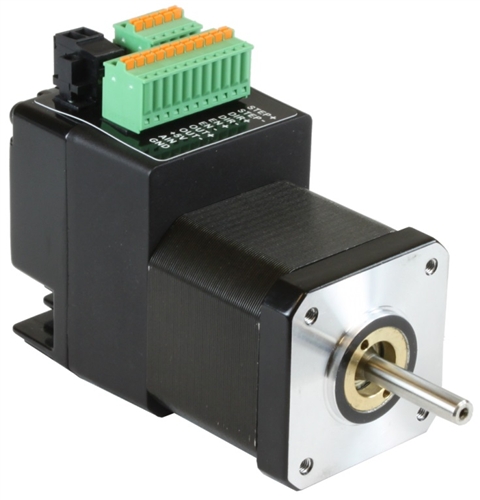

The STM17Q-3RN integrated stepper can operate in all of the same control modes as the S option, plus the ability to run a Q program stored in non-volatile memory. Q programs are created using Applied Motion’s Q Programmer™ software, which provides powerful commands for motion, I/O, conditional processing, multi-tasking, math functions, and more. All STM17 units are setup and configured using Applied Motion’s ST Configurator™ software.

Each STM17 integrated stepper comes with 3 digital inputs, 1 digital output, and 1 analog input. The digital inputs accept signals of 5-24 VDC and can be used for connecting pulse & direction signals, end-of-travel limit switches, jog switches, quadrature encoder signals, PLC outputs, sensors, or many other signal types. The digital output can be connected to PLC inputs, counters, lights, relays, or other devices. The analog input accepts 0-5 VDC signals and can be used for velocity and position control.

The STM17Q-3RN comes with an RS-485 port for programming and serial communications.

• Sophisticated current control
• Anti-resonance
• Torque ripple smoothing
• Microstep emulation
• NEMA 17 frame size
• Q programming control mode for stand-alone operation
• Capable of all “S” control modes
• RS-485 port for programming and communications

Download the STM17Q-3RN specification sheet in *.pdf format
