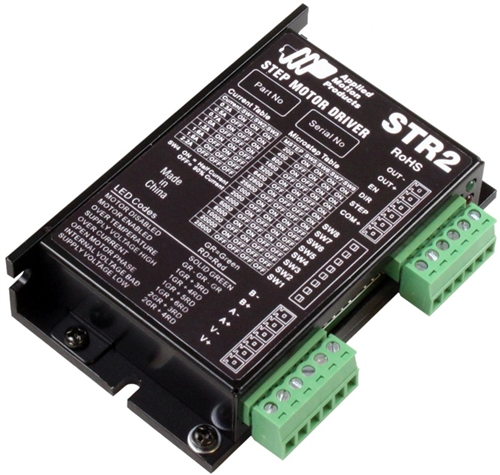

STR2 - Applied Motion Products DC Advanced Microstep Drive (5000-235)

STR2 - Applied Motion Products
STR2

Price: $111.15
Manufacturer SKU: STR2
Manufacturer ID: 5000-235

Quantity in Stock:1


Availability: Normally Stocked
Part Number: STR2
Qty:

Description

The STR2 stepper drive is an ultra compact, digital step & direction drive, great for OEM applications requiring basic step & direction control of a 2-phase step motor. The STR2 outputs up to 2.2 A/phase to the step motor, and is compatible with a variety of 2-phase step motors that have been selected to optimize performance of both the drive and motor.

The STR2 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

Each STR2 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR2 drive can microstep up to 20,000 steps/rev with a 1.8ยบ step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches on the side of the drive, including motor selection, running current, idle current, and step resolution.

  • Ultra compact size
  • Current range .3A to 2.2A peak of sine
  • Electronic damping (anti-resonance)
  • Microstepping & microstep emulation
  • Built-in self test move profile
  • Step & direction inputs
  • CW Pulse/CCW pulse operation
  • Idle current reduction
  • Selectable digital input filter
