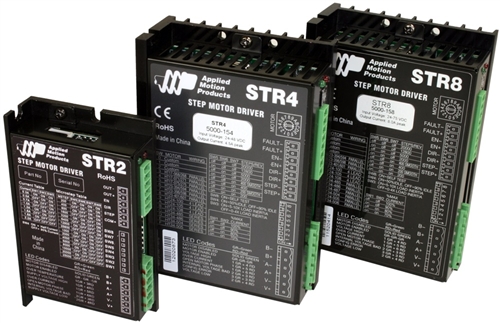

The STR8 drive features advanced microstepping performance and sophisticated current control with anti-resonance. Anti-resonance electronically damps motor and system resonances, which improves motor smoothness and torque over a wide speed range.

Each STR8 step motor drive operates in either Step & Direction or Pulse/Pulse control mode. Selecting between these two modes is done by moving a jumper located under the cover of the drive. Each STR8 drive can microstep up to 20,000 steps/rev with a 1.8º step motor (1/100 step), and can even microstep the step motor when the command pulses are low resolution. This feature is called Microstep Emulation. All drive setup is done via dip switches and a rotary switch on the side of the drive, including motor selection, running current, idle current, and step resolution.

• Current range 2.35A to 8.0A peak of sine
• Electronic damping (anti-resonance)
• Microstepping & microstep emulation
• Built-in self test move profile
• Step & direction inputs
• CW Pulse/CCW pulse operation
• Idle current reduction
• Selectable digital input filter
