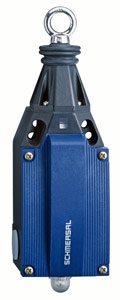

TQ900-11 - Schmersal Cable pull switch (101184478)

TQ900-11 - Schmersal
TQ900-11

Price: $231.00
Manufacturer SKU: TQ900-11
Manufacturer ID: 101184478



Availability: Usually Ships in 3 to 5 Business Days
Part Number: TQ900-11
Qty:

Description

TQ900-04 - Schmersal Cable pull switch

• 1 NO, 1 NC contacts
• Metal enclosure
• one-side operation / wire up to 50 m long
• Position indicator
• Robust design
• Large wiring compartment
• Twisting of towing eye not possible
• External watertight collar
• 3 cable entries M 20 x 1.5

The TQ900 Series features positive-opening NC contacts which are forced open when the trip-wire is pulled. This design also assures machine stoppage if an operator falls into, leans on, or is pulled against the trip wire. In addition the switch is designed to operate if the trip wire is cut or goes slack.
