RSS260-I1-D-ST - Schmersal RSS260 RFID Electronic Safety Sensor (103003606)

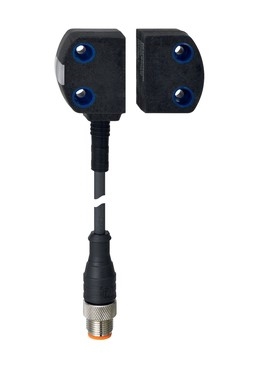

RSS260-I1-D-ST - Schmersal RSS260 RFID Electronic Safety Sensor
RSS260-I1-D-ST

Alternative Views:


Price: $299.00
Manufacturer SKU: RSS260-I1-D-ST
Manufacturer ID: 103003606



Availability: Subject to availability
Part Number: RSS260-I1-D-ST
Qty:

Description

RSS260-I1-D-ST - Schmersal RSS260 RFID Electronic Safety Sensor

*Note: This is only the sensor. Actuator magnet and accessories sold separately.*

Specifications:

• Thermoplastic enclosure
• Simple mounting without additional angle
• RFID-technology for needs-based protection against tampering
• Individual coding with RFID technology
• Coding level "High" according to ISO 14119
• 1 x connector plug M8
• Frontal and lateral actuation enabled
• Max. 31 sensors can be wired in series.

Schmersal RSS260 RFID Electronic Safety Sensors are designed for applications in safety circuits and are used for monitoring the position of movable separating safety guards. In addition to their compact design and high protection against tampering, they are unique because of their universal suitability for removable, rotatable and sliding protection equipment.

  • High protection against tampering through RFID technology
  • Compact design and subtle, elegant design
  • Easy installation without additional angles
  • Universal application through different targets for typical installation situations
  • Repeated universal or individual coding
  • Preservation of safety levels and diagnostic capability even when connected in series
  • Future with integrated AS interface

Schmersal RSS260 RFID Electronic Safety Sensors Catalog Pages and Schmersal RSS260 RFID Electronic Safety Sensors Documentation in *.pdf format
