AZM170-B25-L-G2 - Schmersal T-Grip for Left-Hand Hinged Guard ( 101175227 )

AZM170-B25-L-G2 - Schmersal
Price: $151.00
Manufacturer SKU: AZM170-B25-L-G2
Manufacturer ID: 101175227

Availability: Usually Ships in 3 to 5 Business Days
Part Number: AZM170-B25-L-G2

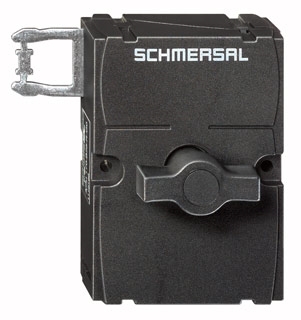

Door-handle actuator for solenoid interlock AZM 170; Door hinge on left-hand side; with T-grip

The AZM170 Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component. The unit features independent actuator key (guard) position and solenoid-latching pin position contacts. These permit the prevention of machine restart until the guard is closed and the solenoid-latching pin is in the locked position. The AZM170 consists of an electromechanical safety interlock switch joined to a solenoid-latching mechanism. Both the safety switch and solenoid mechanism feature "positive-break" contacts. In addition the actuator key features a built-in latch (unlocked key holding force of 7 pounds), and an auxiliary manual unlocking device the latter provided to aid in installation and for use in the event of a power failure (when using the "unlocking by solenoid" model). Each unit is supplied with a cord grip and a cap to seal the unused key entry port in the solenoid-latching mechanism.

  • Ergonomic operation
  • No supplementary door-handle required
  • Door hinge on left-hand side (View point towards the hazardous area)
  • No protruding actuator
  • with T-grip
  • Simple mounting
  • Several door-handles available
  • Possibility to mount the own handles using a default square screw (8 mm)
